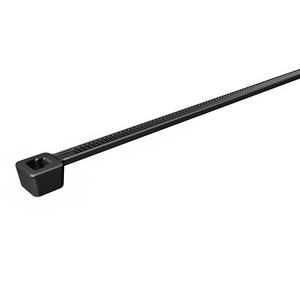

Cable tie inside serrated, 100x2.5mm, ∅1.5-22.0mm, black, 1000pcs.
Art.-No. 111-00058 | T18R-PA66HIR(S)-BK |  Details

The Allrounder: T-Series cable ties can be used for almost any type of application.

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet e-Learning
    Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Black (BK)
    Identification Plate Position none
    Local order number T18R.SB937
    Material Polyamide 6.6, high impact modified, scan black (PA66HIR(S))
    PART DESCRIPTION T18R-PA66HIR(S)-BK
    Pack Cont. 1000pcs.
    Package Content packed in Bag
    Product Family T-Series in PA66HIR(S)
    Product Group Cable Ties for higher impact resistant Polyamide 6.6 ScanBlack
    Releasable Closure (Yes/No) No
    Short Description Cable Tie 101x2.5 mm high impact modified, scan black
    Tie Closure plastic pawl
    Type T18R
    Variant Inside Serrated
    Bundle Diameter max (metric) 22.0mm
    Bundle ∅ 1.5-22.0mm
    Bundle ∅ min. 1.5mm
    Cable Tie Head Length (metric) 4.8mm
    Cable Tie Head Width (metric) 4.45mm
    Height (H) 3.7mm
    Length (L) 100mm
    Min.Tensile Strength 80N
    Strap Width max. (G) (imperial) 0.18"
    Thickness (T) 1.0mm
    Width (W) 2.5mm
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +80 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660320101
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
