22/12/2024

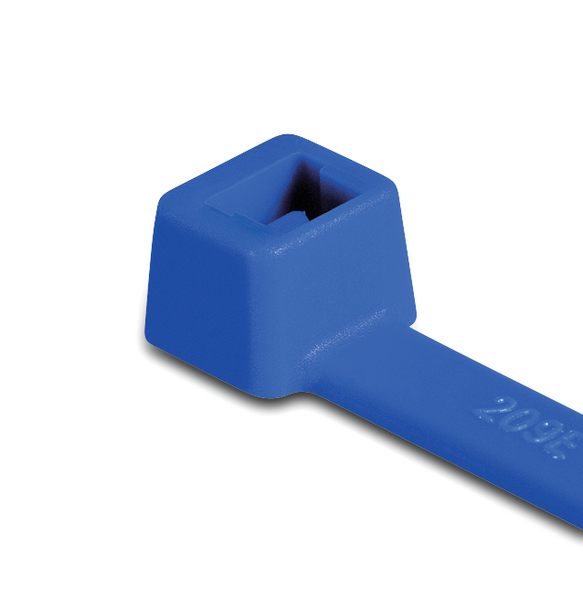

Cable tie inside serrated, 101.6x2.5mm, ∅1.5-22.0mm, blue, 100pcs.
Art.-No. 111-00265 | T18R-PA66-BU |  Details

The Allrounder: T-Series cable ties can be used for almost any type of application.

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet e-Learning

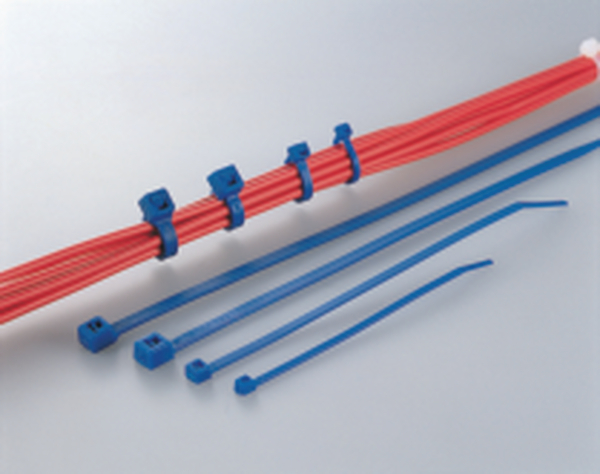

    Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Blue (BU)
    Identification Plate Position none
    Local order number T18R.NL3P
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T18R-PA66-BU
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family T-Series in PA66 coloured
    Product Group Cable ties polyamide 6.6 standard
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T18R
    Variant Inside Serrated
    Bundle Diameter max (metric) 22.0mm
    Bundle ∅ 1.5-22.0mm
    Bundle ∅ min. 1.5mm
    Cable Tie Head Length (metric) 4.8mm
    Cable Tie Head Width (metric) 4.45mm
    Height (H) 3.7mm
    Length (L) 101.6mm
    Min.Tensile Strength 80N
    Strap Width max. (G) (imperial) 0.18"
    Thickness (T) 1.0mm
    Width (W) 2.5mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Specifications csa-C22.2 no. 62275, IEC 60092 series, IEC 62275:2006
    UL OCD link Link
    UL Recognized (US and Canada) Yes
    UL-File Number E64963
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660339479
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Width (m) 0.39m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Show all
