Cable tie inside serrated, 150x3.5mm, ∅1.5-35.0mm, black, 100pcs.
Art.-No. 111-01719 | T30R-PA11-BK |  Details

The Allrounder: T-Series cable ties can be used for almost any type of application.

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet e-Learning

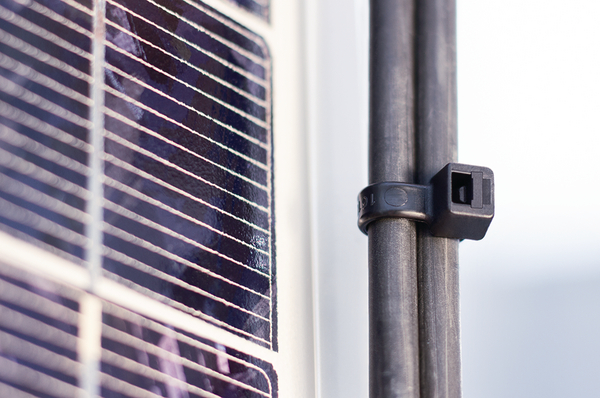

    Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Black (BK)
    Identification Plate Position none
    Local order number T30R.GB3P
    Material Polyamide 11 (PA11)
    PART DESCRIPTION T30R-PA11-BK
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Group Cable Ties inside serrated
    Releasable Closure (Yes/No) No
    Short Description Cable Tie 150x3.5 black
    Tie Closure plastic pawl
    Type T30R
    Variant Inside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Length (L) 150mm
    Min.Tensile Strength 130N
    Thickness (T) 1.1mm
    Weight/Unit 0.0007kg
    Width (W) 3.5mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Specifications BV 03856/H0 BV, IEC 62275, UL 62275
    UV-Stabilised Yes
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 4031026521398
    Packaging 1 - Height (m) 0.063m
    Packaging 1 - Length (m) 0.22m
    Packaging 1 - Qty 100
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00263m³
    Packaging 1 - Weight (kg) 0.070001kg
    Packaging 1 - Width (m) 0.19m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 10000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 7.8021kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 177.04kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
