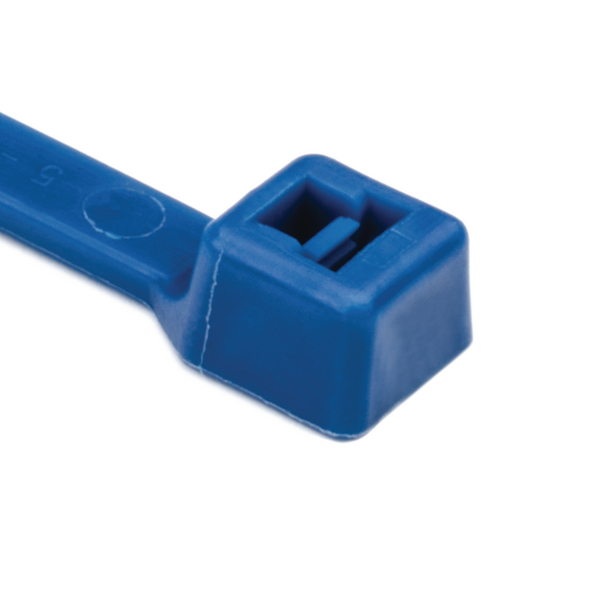

Cable tie inside serrated, 381.0x4.7mm, ∅5.0-105mm, blue, 100pcs.
Art.-No. 111-00718
| T50L-E/TFE-BU
|
Details
- Available in a wide range of materials and sizes
- High tensile strength with very low insertion force
- Only high quality plastic is used meeting recycling targets
- Inside serrated cable ties for a strong hold onto bundles
- Ergonomic bent tail offers quick and simple installation
- Easy application either manually or with an application tool
Request your individual offer now
Request quote
More products in this product group:

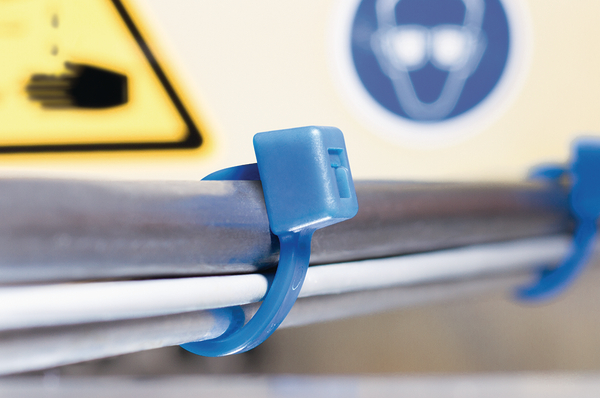

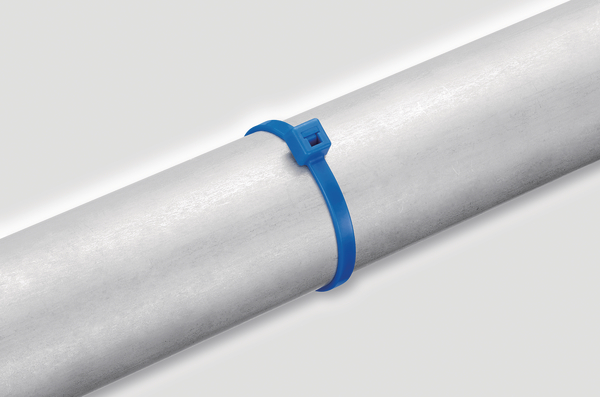

| Application | These cable ties are used for routing, bundling and securing of cables, pipes and hoses. |
| Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
| Colour | Blue (BU) |
| Identification Plate Position | none |
| Local order number | T50L-TZ |
| Material | Ethylene Tetrafluoroethylene (E/TFE) |
| PART DESCRIPTION | T50L-E/TFE-BU |
| Pack Cont. | 100pcs. |
| Package Content packed in | Bag |
| Product Family | T-Series in E/TFE |
| Product Group | Cable Ties for higher chemical resistance for temperatures up to +170 °C in Ethylentetrafluorineethylene |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 382x4.6 E/TFE blue |
| Tie Closure | plastic pawl |
| Type | T50L |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 105mm |
| Bundle ∅ | 5.0-105mm |
| Bundle ∅ min. | 5.0mm |
| Cable Tie Head Height (metric) | 5.9mm |
| Cable Tie Head Length (metric) | 7.2mm |
| Cable Tie Head Width (metric) | 8.1mm |
| Length (L) | 381.0mm |
| Min.Tensile Strength | 225N |
| Strap Width max. (G) (imperial) | 0.32" |
| Thickness (T) | 1.7mm |
| Weight/Unit | 0.0027kg |
| Width (W) | 4.7mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V0 |
| Hazardous Goods | No |
| Operating Temperature | -80 °C to +170 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | No |
| UL-File Number | E64962 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | JP |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4944387138412 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 0.5m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0015m³ |
| Packaging 1 - Weight (kg) | 0.540001kg |
| Packaging 1 - Width (m) | 0.15m |
| Packaging 3 - Height (m) | 0.28m |
| Packaging 3 - Length (m) | 0.45m |
| Packaging 3 - Qty | 2500 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0391m³ |
| Packaging 3 - Weight (kg) | 13.840025kg |
| Packaging 3 - Width (m) | 0.31m |
| Packaging 4 - Height (m) | 1.264m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 50000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.213m³ |
| Packaging 4 - Weight (kg) | 297.8kg |
| Packaging 4 - Width (m) | 0.8m |
