22/12/2024

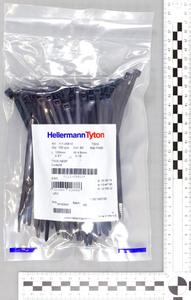

Cable tie inside serrated, 150x4.6mm, ∅1.5-35.0mm, black, 100pcs.
Art.-No. 111-05810 | T50S-PA66-BK |  Details

The Allrounder: T-Series cable ties can be used for almost any type of application.

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet e-Learning
    Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Black (BK)
    Identification Plate Position none
    Local order number T50S.NB3P
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T50S-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in pcs.
    Product Family T-Series in PA66 black
    Product Group Cable Ties Polyamide 6.6 standard
    Releasable Closure (Yes/No) No
    Short Description Cable Tie 150x4.6 mm black
    Tie Closure plastic pawl
    Type T50S
    Variant Inside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Cable Tie Head Length (metric) 7.2mm
    Cable Tie Head Width (metric) 8.1mm
    Length (L) 150mm
    Min.Tensile Strength 225N
    Strap Width max. (G) (imperial) 0.32"
    Thickness (T) 1.2mm
    Weight/Unit 0.00101kg
    Width (W) 4.6mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Nato number 5975-12-164-3086
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660018886
    Packaging 1 - Height (m) 0.043m
    Packaging 1 - Length (m) 0.176m
    Packaging 1 - Qty 100
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00082m³
    Packaging 1 - Weight (kg) 0.101001kg
    Packaging 1 - Width (m) 0.108m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 8000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 8.88208kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 160000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 198.64kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
