13/11/2024

Packaging Tie TPT300
Art.-No. 112-60300 | TPT300-PA66-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet

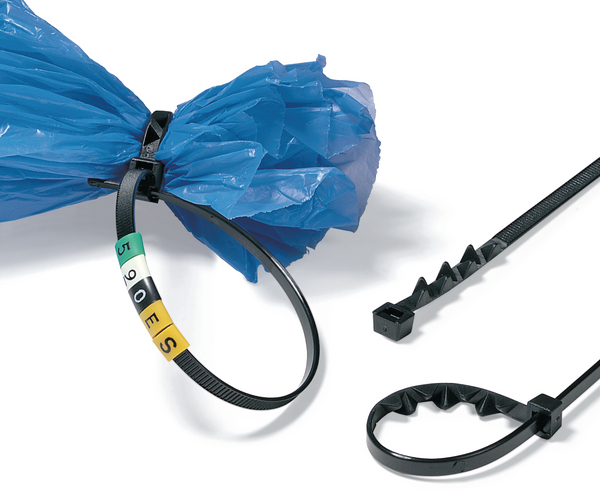

    Application The TPT tie gives a simple and quick method of both closing and securing bags and sacks, typical applications include bags of powdered milk, chemicals and mail.
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Black (BK)
    Identification Plate Position none
    Local order number TPT300.NB3P
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION TPT300-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in pcs.
    Product Group Packaging Tie TPT300
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type TPT300
    Variant Inside Serrated

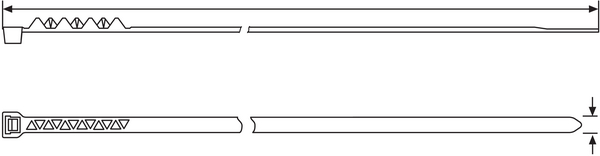

    Bundle Diameter max (metric) 80.0mm
    Bundle ∅ 80.0mm
    Length (L) 300mm
    Min.Tensile Strength 225N
    Width (W) 4.7mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660327377
    Packaging 1 - Qty 100
    Packaging 1 - Weight (kg) 0.2060kg
    Packaging 3 - Qty 5000
    Packaging 4 - Length (m) 1.20m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.80m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
