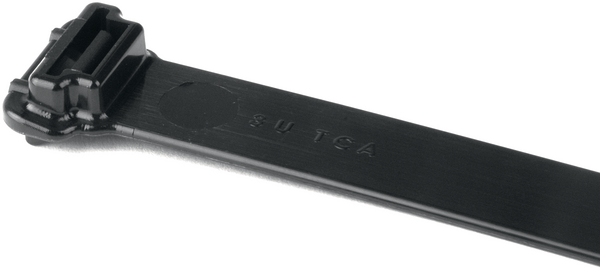

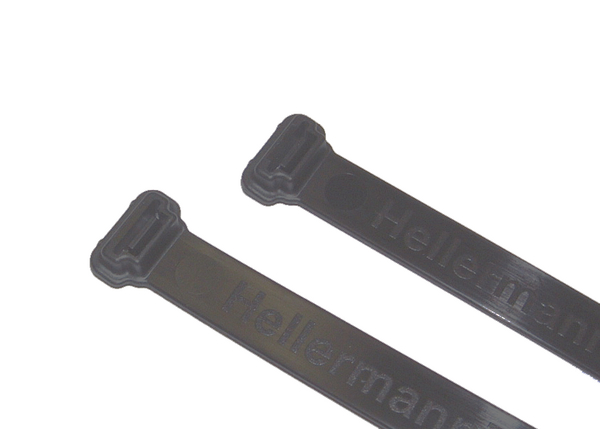

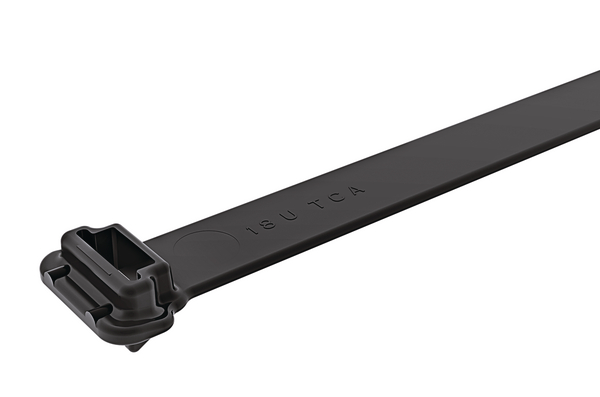

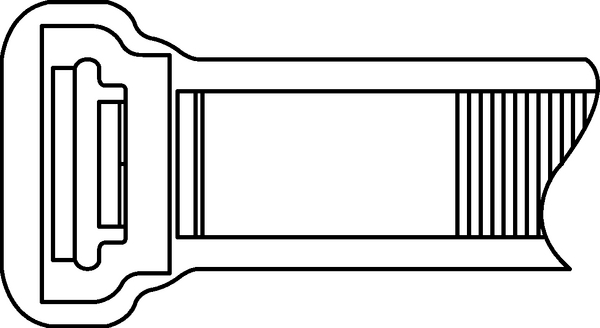

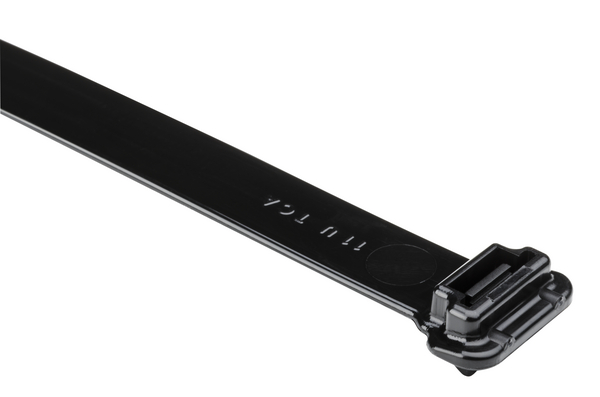

Cable tie inside serrated, 307.0x12.7mm, ∅9.5-82.5mm, black, 300pcs.
Art.-No. 111-12301
| WSI-PA66HIRHSUV-BK
|
Details

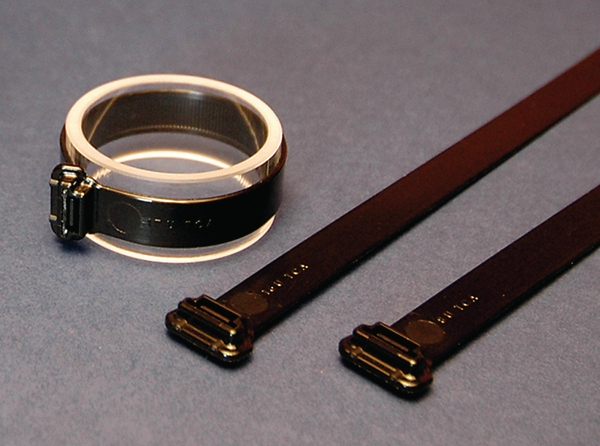

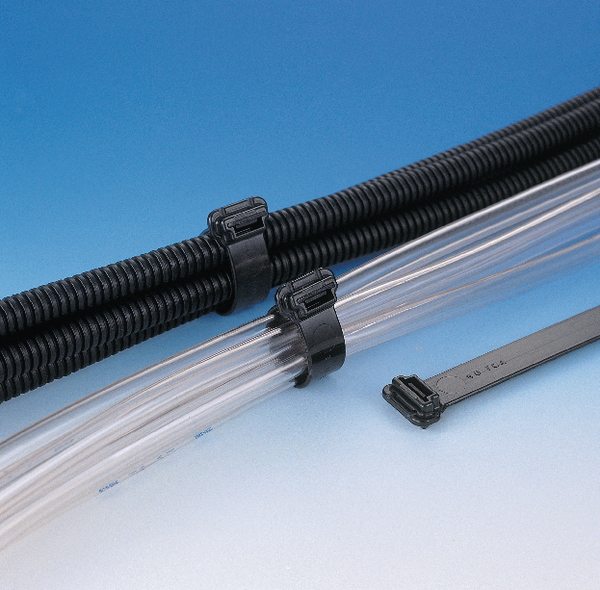

- Wide strap is designed to minimize pinching of soft hoses and convoluted tubing

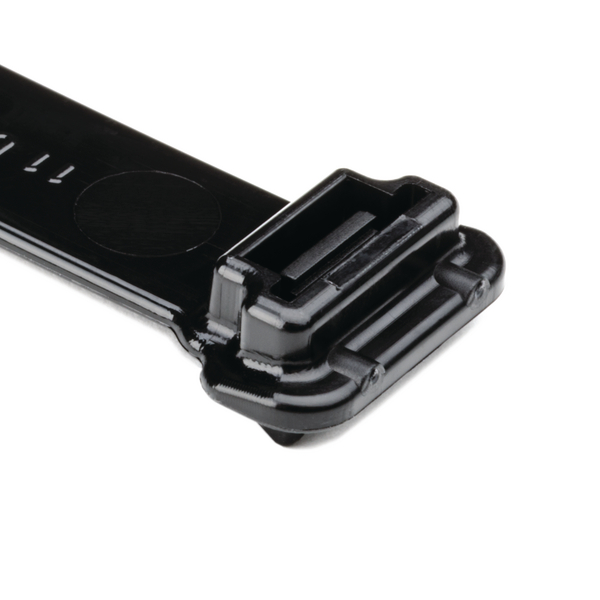

- Low profile head
- Clamping rails on the bottom of head to increase grip on round bundles
- Accommodates a large range of bundle diameters: 9.5mm - 104.7mm
- Flexible strap
- Bent tip for quick insertion into mounts
Request your individual offer now
Request quote
More products in this product group:
| Application | The very flexible wide strap is used in heavy-duty application where limited room is offered for the application. It is therefore a valued product in all areas of the mass transit, construction- and automotive industry. |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Local order number | WSI-HIRHS-BK-D1 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | WSI-PA66HIRHSUV-BK |
| Pack Cont. | 300pcs. |
| Package Content packed in | Bag |
| Product Family | with Low-profile Head |
| Product Group | Wide-Strap Cable Tie |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 305x12.7 black |
| Tie Closure | plastic pawl |
| Type | WSI |

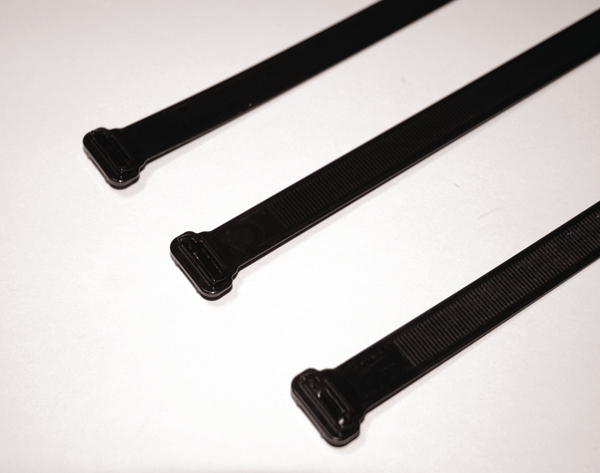

| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 82.5mm |
| Bundle ∅ | 9.5-82.5mm |
| Bundle ∅ min. | 9.5mm |
| Cable Tie Head Height (metric) | 5.6mm |
| Cable Tie Head Length (metric) | 10.2mm |
| Cable Tie Head Width (metric) | 19.8mm |

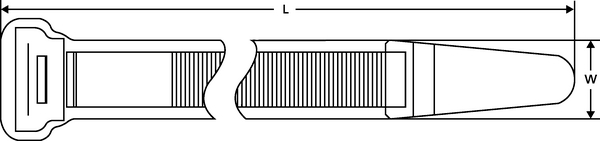

| Length (L) | 307.0mm |
| Min.Tensile Strength | 535N |
| Strap Width max. (G) (imperial) | 0.78" |
| Thickness (T) | 1.4mm |
| Weight/Unit | 0.002kg |
| Width (W) | 12.7mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026311654 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.5m |
| Packaging 1 - Qty | 300 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0018m³ |
| Packaging 1 - Weight (kg) | 0.600001kg |
| Packaging 1 - Width (m) | 0.12m |
| Packaging 3 - Height (m) | 0.212725m |
| Packaging 3 - Length (m) | 0.51435m |
| Packaging 3 - Qty | 1200 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 3.020004kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 24000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 81.4kg |
| Packaging 4 - Width (m) | 0.8m |
