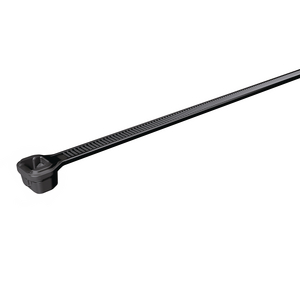

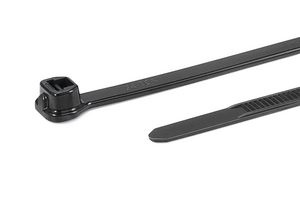

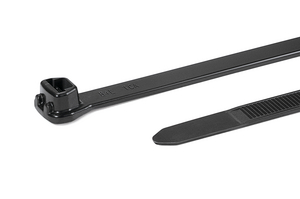

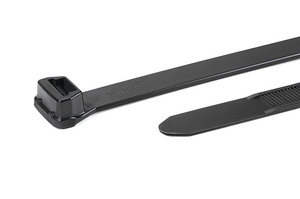

Cable tie inside serrated, 715x13mm, ∅12-205mm, black, 50pcs.
Art.-No. 108-00047 | X250I-PA66W-BK Details

  • Inside serrated cable tie
  • High tensile strength around cable bundles
  • Smooth, rounded head design
  • Space saving solution
  • Improved ergonomic design
  • Provides a secure fastening with no lateral movement
Show more

Request your individual offer now

e-Learning
Application The X-Series range of cable ties provides a new and improved design compared with standard cable ties, delivering a range of benefits and enhanced performance. With a new streamlined design and smaller head, the X-Series cable ties provide a superior fixing solution for tight applications, whilst also benefiting from a better grip around the bundle. This professional cable tie range is available in weather resistant and high impact / heat stabilised materials, ensuring these fixings consistently perform well both at high temperatures and in cold environments.
Colour Black (BK)
Identification Plate Position none
Local order number X250I.WB2P
Material Polyamide 6.6, UV-resistant (PA66W)
PART DESCRIPTION X250I-PA66W-BK
Pack Cont. 50pcs.
Package Content packed in Bag
Product Family X-Series
Product Group Cable ties with smart design
Releasable Closure (Yes/No) No
Short Description Cable Tie 715x13 mm, UV-resistant, black
Tie Closure plastic pawl
Type X250I
Variant Inside Serrated
Bundle Diameter max (metric) 205mm
Bundle ∅ 12-205mm
Bundle ∅ min. 12mm
Length (L) 715mm
Min.Tensile Strength 1115N
Thickness (T) 1.9mm
Weight/Unit 0.018495kg
Width (W) 13mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications IEC 62275, UL 62275
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660342547
Packaging 1 - Height (m) 0.032m
Packaging 1 - Length (m) 0.85m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00408
Packaging 1 - Weight (kg) 0.92475kg
Packaging 1 - Width (m) 0.15m
Packaging 3 - Height (m) 0.188m
Packaging 3 - Length (m) 0.893m
Packaging 3 - Qty 600
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0408
Packaging 3 - Weight (kg) 11.786kg
Packaging 3 - Width (m) 0.243m
Packaging 4 - Height (m) 1.119m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 9000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.074
Packaging 4 - Weight (kg) 197.79kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
