Cable tie outside serrated for narrow space, 180x9mm, ∅10.0-42.0mm, black, 100pcs.
Art.-No. 112-00011 | Robusto (LPH942)-PA11-BK | Details

This product is not available anymore.

Please contact our sales team.

Polyamide 11 is a bio-based material made from renewable resources

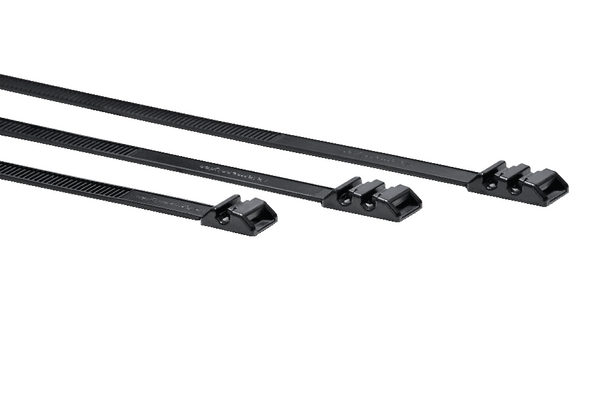

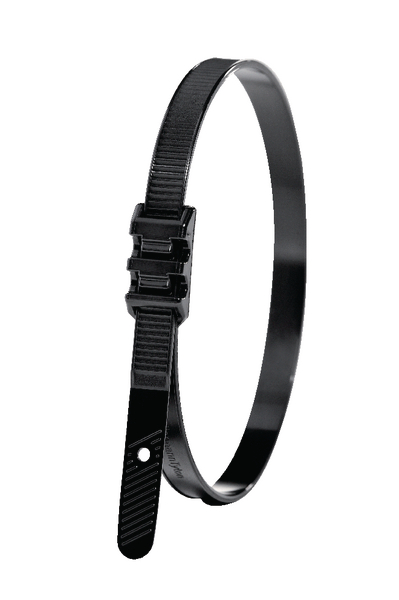

Outside serrated cable tie with rounded head design
Low insertion force for tool-free application
High tensile strength with a single – or a double-bridged head
Soft material for easy handling without damaging the bundle
Very good UV resistance and durability in outdoor applications
Stable technical performance even at very low temperatures
Offers limited resistance to acids, bases and oxidising agents
Low water absorption rate and high durability
Prelocking possible by pushing the strap through the eyelet

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads Datasheet

More products in this product group:

Cable ties with low profile head >

This product is part of:

Samples DE Robusto

Base Data

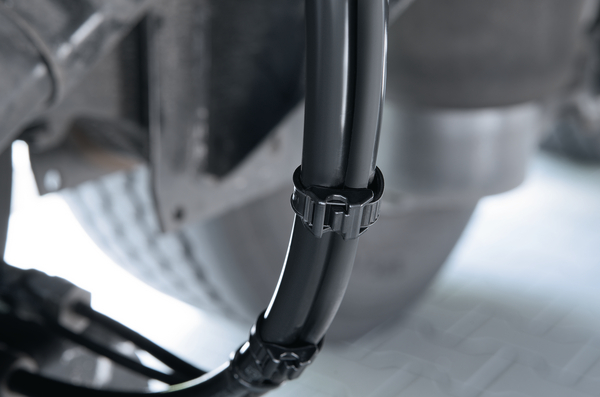

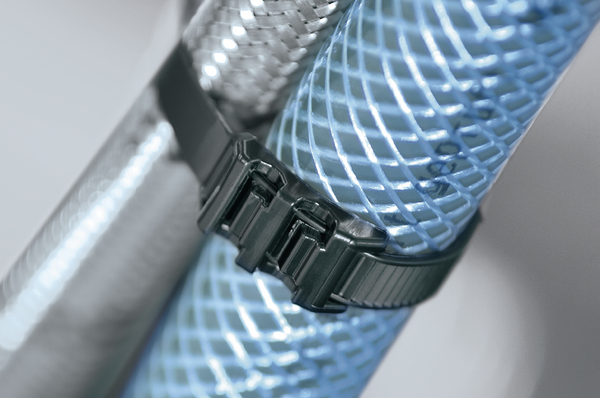

Application	Robusto cable ties manufactured from PA11 have many technical features making them suitable for use in a variety of applications to fix and support cables and pipes. They offer an excellent resistance to chemicals in most challenging environments like offshore or on oil rigs and construction vehicles. In addition, PA11 is lightweight, making it attractive for applications where weight savings are importand and the very good UV resistance makes it a perfect choice for solar panel installations.

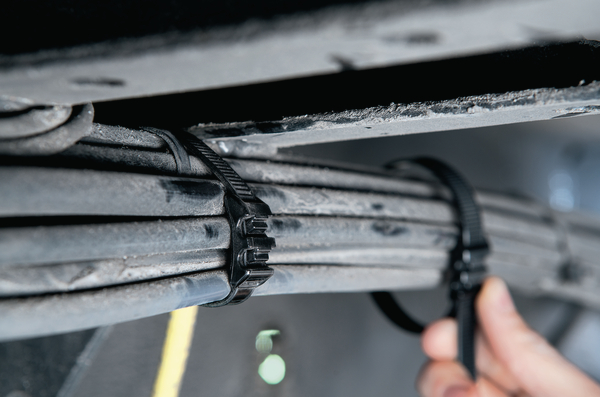

Application Method	Robusto cable ties have many technical features which make them suitable for use in many applications for fixing and supporting cables, pipes and other elements... The polyamide 11 used to manufacture these ties offers excellent resistance to chemicals in even the most challenging environments such as offshore, oil rigs, construction vehicles, truck & trailer. These cable ties have excellent UV resistance as well as being highly resistant to chemicals like chlorides: recommended for use on galvanised steel, especially on solar panel installations. In addition, the material has a high impact resistance to low temperatures which enables Robusto ties to be used in areas where it is cold, for example at high altitudes or in Nordic countries.
Colour	Black (BK)
Fixation Method	Others
Identification Plate Position	none
Key product features	for narrow space
Local order number	LPH942.9B3P
Material	Polyamide 11 (PA11)
PART DESCRIPTION	Robusto (LPH942)-PA11-BK
Pack Cont.	100pcs.
Package Content packed in	Box
Product Family	Robusto-Series
Product Group	Cable ties with low profile head
Releasable Closure (Yes/No)	No
Short Description	Low Profile Head Cable Tie 180x9 mm, black
Tie Closure	plastic pawl
Type	Robusto (LPH942)
Variant	Outside Serrated

Product Dimensions


Bundle Diameter max (metric)	42.0mm
Bundle ∅	10.0-42.0mm
Bundle ∅ min.	10.0mm
Length (L)	180mm
Min.Tensile Strength	360N
Thickness (T)	1.7mm
Weight/Unit	0.00268kg
Width (W)	9mm

Downloads

Specifications

ELV compliant Dir. Art. 4 (2)	YES
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications
Specifications	IEC 62275, UL 62275

Logistics and Packaging


Country of Origin	GB
Customs Number	39269097
GTIN-13 / EAN	4031026271224
Packaging 1 - Height (m)	0.08m
Packaging 1 - Length (m)	0.19m
Packaging 1 - Qty	100
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00129m³
Packaging 1 - Weight (kg)	0.268001kg
Packaging 1 - Width (m)	0.085m
Packaging 3 - Height (m)	0.204m
Packaging 3 - Length (m)	0.591m
Packaging 3 - Qty	2400
Packaging 3 - Type	Box
Packaging 3 - Volume (m³)	0.048m³
Packaging 3 - Weight (kg)	7.082024kg
Packaging 3 - Width (m)	0.398m
Packaging 4 - Height (m)	1.164m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	48000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.117m³
Packaging 4 - Weight (kg)	162.64kg
Packaging 4 - Width (m)	0.8m
