Cable tie outside serrated, 385x7.6mm, ∅5.0-105mm, black, 100Bag
Art.-No. 118-00174 | T120ROS-PA66HIRHS(REC)-BK |  Details

T18ROS outside serrated Cable Tie.

    • Manufactured from Post Industrial Recycled (PIR) PA66
    • Heat stabilised, impact modified material
    • Easy insertion combined with high tensile strength
    • Outside serrated cable tie with smooth surface to the bundle
    • Tie follows the contours of the cable bundle perfectly
    • Takes up less space due to curved head design
    • Easy application either manually or with a processing tool
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet e-Learning

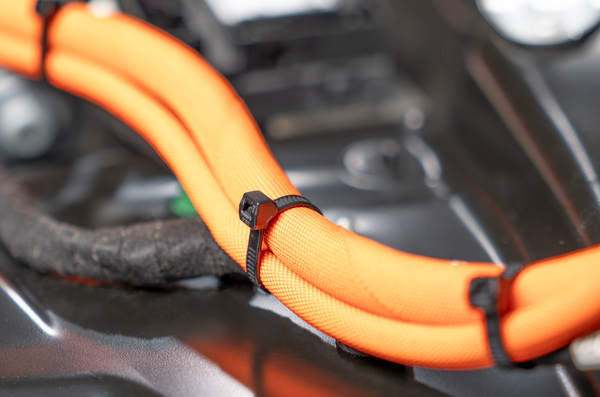

    Application OS-Series cable ties are used in many areas where thin-walled or soft insulation wires and cable are being installed, for instance automotive and aircraft industry. OS ties manufactured from PA66V0 material are suitable for applications where safety regulations require reduction of smoke and dangerous gases.
    Colour Black (BK)
    Identification Plate Position none
    Material Polyamide 6.6 recycled, high impact modified, heat stabilised (PA66HIRHS(REC))
    PART DESCRIPTION T120ROS-PA66HIRHS(REC)-BK
    Pack Cont. 100Bag
    Product Family OS-Series
    Product Group Cable ties for thin-walled bundles
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120ROS
    Variant Outside Serrated
    Bundle Diameter max (metric) 105mm
    Bundle ∅ 5.0-105mm
    Bundle ∅ min. 5.0mm
    Height (H) 1.8mm
    Length (L) 385mm
    Min.Tensile Strength 535N
    Strap Width max. (G) 7.6mm
    Thickness (T) 1.8mm
    Width (W) 7.6mm
    Halogen-free Yes
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660199608
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
