Cable tie outside serrated, 150x4.6mm, ∅1.6-35.0mm, grey, 200pcs.
Art.-No. 118-00092 | T50SOS-PA66-GY |  Details

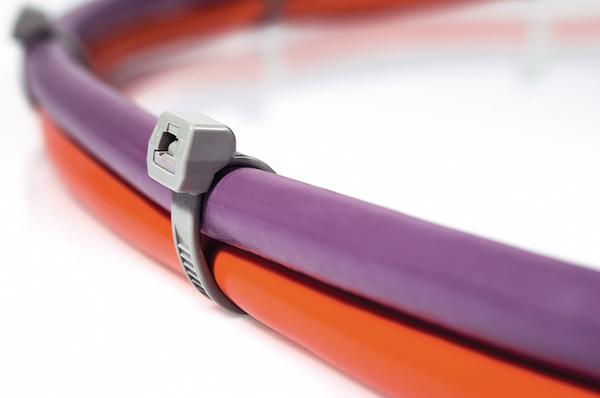

Outside serrated OS-Series cable tie with smooth surface to the bundle.

    • Outside serrated cable tie with smooth surface to the bundle
    • Tie follows the contours of the cable bundle perfectly
    • Takes up less space due to curved head design
    • Easy insertion combined with high tensile strength
    • PA46 material for higher temperatures up to +195 °C (500 h)
    • PA66V0 cable ties fulfill Limited Fire Hazard requirements
    • Easy application either manually or with a processing tool
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet e-Learning
    Application OS-Series cable ties are used in many areas where thin-walled or soft insulation wires and cable are being installed, for instance automotive and aircraft industry. OS ties manufactured from PA66V0 material are suitable for applications where safety regulations require reduction of smoke and dangerous gases.
    Colour Grey (GY)
    Identification Plate Position none
    Local order number T50SOS CINZA ABRACADEIRA
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T50SOS-PA66-GY
    Pack Cont. 200pcs.
    Package Content packed in Bag
    Product Family OS-Series
    Product Group Cable ties for thin-walled bundles
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SOS
    Variant Outside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.6-35.0mm
    Bundle ∅ min. 1.6mm
    Height (H) 1.3mm
    Length (L) 150mm
    Min.Tensile Strength 225N
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin BR
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
