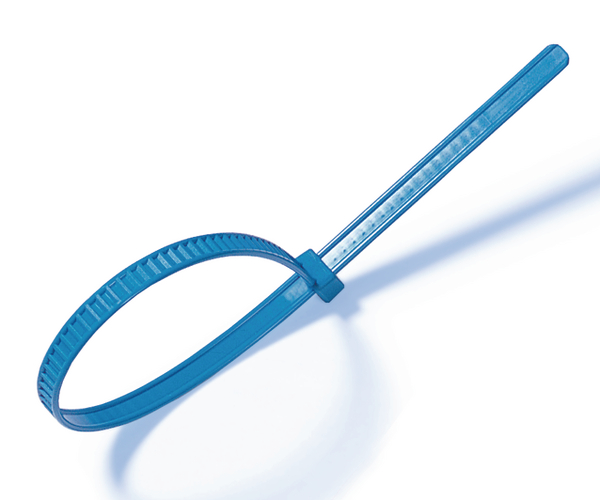

Releasable cable tie, 195.0x4.8mm, ∅2.0-50.0mm, 245N, blue, 25pcs.
Art.-No. 115-00006
| LR55R-PA66-BU
|
Details
- Releasable and reusable cable tie

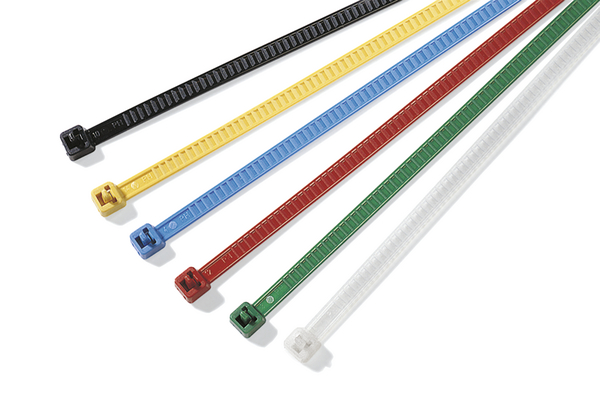

- Various colours for applications needing colour coding
- Extended trigger for simple and quick release of ties
- Risk of accidental release is minimised
- Outside serration prevents damage to cable insulation
Request your individual offer now
Request quote
More products in this product group:

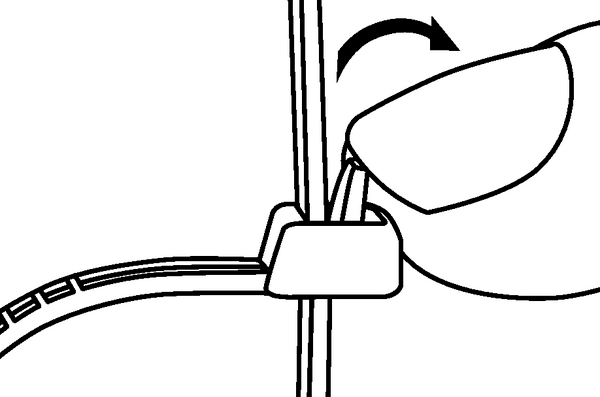

| Application | Releasable cable ties of our LR55-Series offer some extra benefits. Their serration is on the outside of the cable tie. This will minimise the risk of damage to cables or other elements. Additionally LR55 cable ties are available in different colours – optimally suited for temporary identification within logistic, packaging, cable harness production or for testing purposes. The strap is released when pushing the extended pawl upwards. The risk of opening the cable tie accidentally is minimised. |
| Colour | Blue (BU) |
| Fixation Method | Releasable Cable Tie |
| Identification Plate Position | none |
| Key product features | releasable |
| Local order number | LR55R.NL1P |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | LR55R-PA66-BU |
| Pack Cont. | 25pcs. |
| Package Content packed in | pcs. |
| Product Family | LR55-Series |
| Product Group | Cable ties outside serrated for marking, releasable |
| Releasable Closure (Yes/No) | Yes |
| Short Description | Releasable Cable Tie 195x4.7 mm, blue |
| Tie Closure | plastic pawl |
| Type | LR55R |
| Variant | Outside Serrated |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026251684 |
| Packaging 1 - Height (m) | 0.013m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00047m³ |
| Packaging 1 - Weight (kg) | 0.02811kg |
| Packaging 1 - Width (m) | 0.12m |
| Packaging 2 - Height (m) | 0.17m |
| Packaging 2 - Length (m) | 0.288m |
| Packaging 2 - Qty | 1000 |
| Packaging 2 - Type | Box |
| Packaging 2 - Volume (m³) | 0.0087m³ |
| Packaging 2 - Weight (kg) | 1.2544kg |
| Packaging 2 - Width (m) | 0.178m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 5.6676kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 80000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 135.92kg |
| Packaging 4 - Width (m) | 0.8m |
