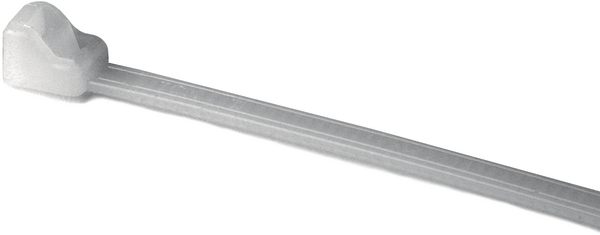

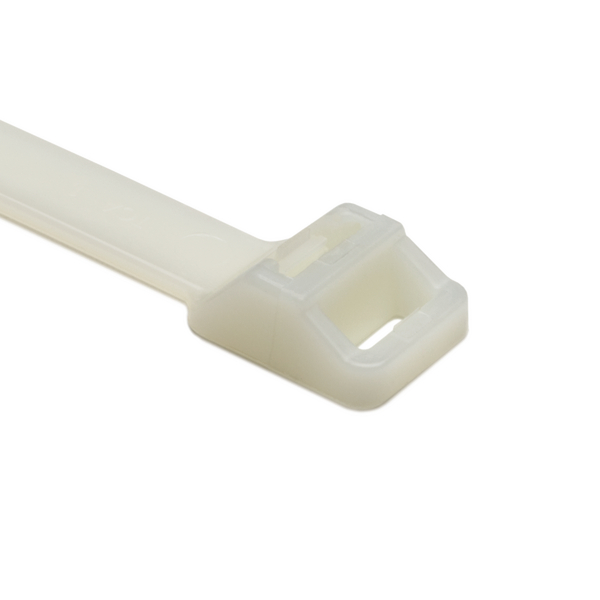

Releasable cable tie, 1030.0x12.5mm, ∅12.0-305.0mm, 1115N, natural, 25pcs.
Art.-No. 131-75519
| RT250XL-PA66-NA
|
Details
- Releasable and reusable cable tie
- Suitable for larger and/or heavier bundles
- Eyelet allows excess tail to be tucked neatly away
- Available in black and natural colour
- Extended trigger for simple and quick release of ties
- Protected trigger to avoid accidental release
- RT250 cable ties are inside serrated
Request your individual offer now
Request quote
More products in this product group:
| Application | The RT250 is a releasable cable tie. Due to its minimum loop tensile strength of 1,115 N the cable tie is perfectly suited to fix larger and/or heavier bundles. RT250 can be opened and reused. UV-resistant cable ties manufactured from PA66W are recommended for outdoor applications. For shorter lengths REL250-Series can be offered. |
| Colour | Natural (NA) |
| Fixation Method | Releasable Cable Tie |
| Identification Plate Position | none |
| Key product features | releasable |
| Local order number | RT250XL.NN1P |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | RT250XL-PA66-NA |
| Pack Cont. | 25pcs. |
| Package Content packed in | Bag |
| Product Family | RT250-Series up to 1115 N loop tensile strength |
| Product Group | Cable ties inside serrated with tuckaway |
| Releasable Closure (Yes/No) | Yes |
| Short Description | Cable Tie with Tuckaway 1030x12.5 mm PA66 natural |
| Tie Closure | plastic pawl |
| Type | RT250XL |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 305.0mm |
| Bundle ∅ | 12.0-305.0mm |
| Bundle ∅ min. | 12.0mm |
| Cable Tie Head Height (metric) | 9.5mm |
| Cable Tie Head Length (metric) | 22.4mm |
| Cable Tie Head Width (metric) | 20mm |
| Length (L) | 1030.0mm |
| Min.Tensile Strength | 1115N |
| Strap Width max. (G) (imperial) | 0.79" |
| Thickness (T) | 2.2mm |
| Weight/Unit | 0.037kg |
| Width (W) | 12.5mm |
Download
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL OCD link | Link Link Link Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Type | 11 |
| UL-File Number | E64139 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026115696 |
| Packaging 1 - Height (m) | 0.06m |
| Packaging 1 - Length (m) | 0.8m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0096m³ |
| Packaging 1 - Weight (kg) | 0.925001kg |
| Packaging 1 - Width (m) | 0.2m |
| Packaging 3 - Height (m) | 0.13811249999999998m |
| Packaging 3 - Length (m) | 1.177925m |
| Packaging 3 - Qty | 250 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0387m³ |
| Packaging 3 - Weight (kg) | 9.84001kg |
| Packaging 3 - Width (m) | 0.238125m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 6000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 257.16kg |
| Packaging 4 - Width (m) | 0.8m |
