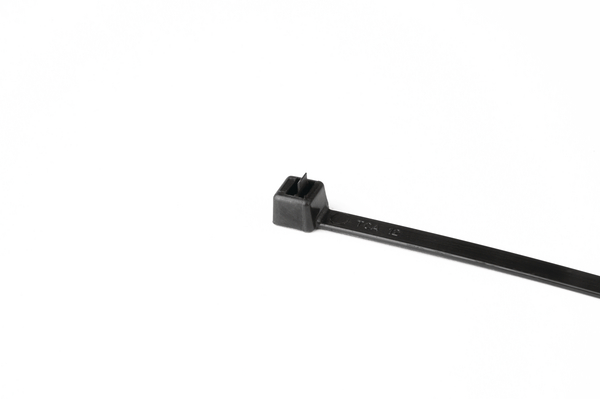

Releasable cable tie, 160.0x4.6mm, ∅1.5-35.0mm, 225N, black, 100pcs.
Art.-No. 115-06300 | RT50S-PA66-BK |  Details

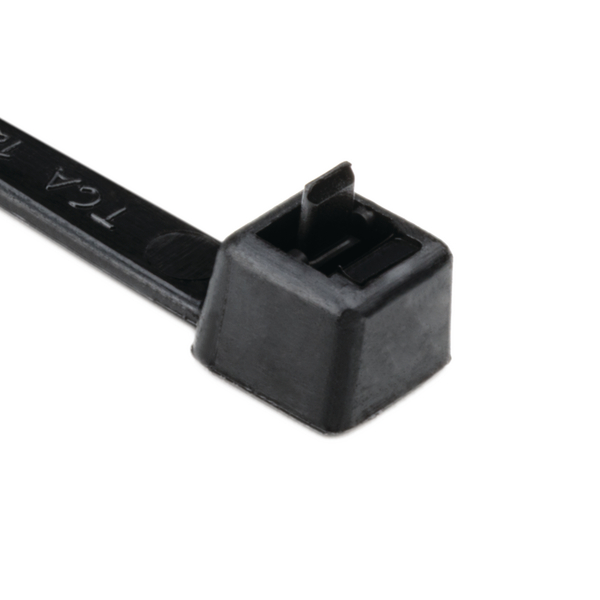

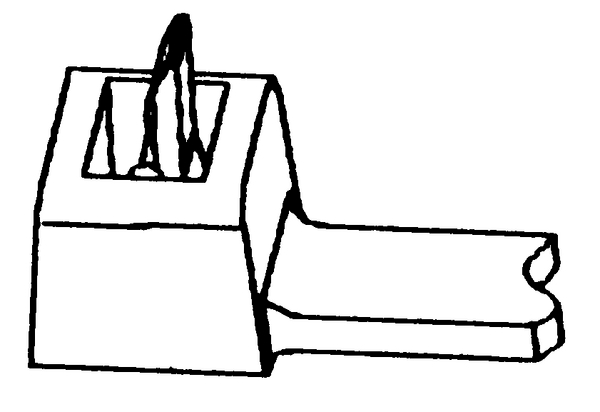

Releasable cable tie features a head design with extended pawl for quick release of bundles.

    • Extended trigger for simple and quick release of ties
    • Multiple grades of PA 6.6 for use indoors, outdoors or at high temperatures
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet

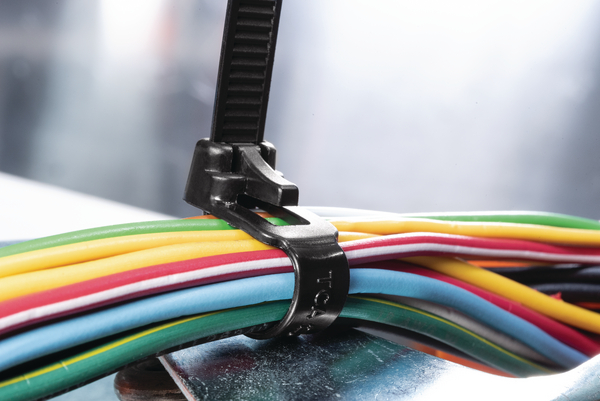

    Application Used in a wide range of industries these releasable and reusable ties are ideal where temporary installation or the addition or removal of cables is required, for example: theatres, outdoor events and harness work.
    Colour Black (BK)
    Fixation Method Releasable Cable Tie
    Identification Plate Position none
    Key product features releasable
    Local order number RT50S.NB3P
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION RT50S-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family RT Series With Extended Pawl
    Product Group Releasable cable tie PA66 RT-Series RT50S
    Releasable Closure (Yes/No) Yes
    Tie Closure plastic pawl
    Type RT50S
    Variant Inside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Height (H) 1.40mm
    Length (L) 160.0mm
    Min.Tensile Strength 225N
    Width (W) 4.6mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    Specifications UL-ZODZ2.E64139
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL Type 11
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026312293
    Packaging 1 - Weight (kg) 1.2kg
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
