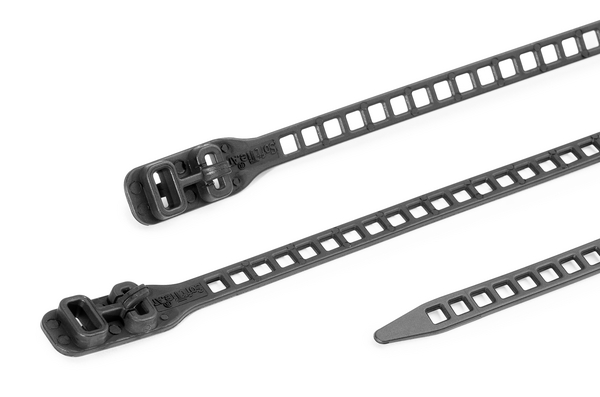

Releasable cable tie, 260x7.0mm, ∅70.0mm, 57N, black, 12pcs.
Art.-No. 115-07270 | SOFTFIX S-TPU-BK Details

  • Elastic and flexible cable ties with rounded and smooth edges
  • Releasable and reusable
  • Double slotted head with fixation pawl
  • Flexibility ensures steady and evenly distributed pressure
  • Tight fixation even in vertical position: prevent sliding down or loosing bundle
  • Suitable for moving elements and vibrating applications like windmills, machines, robotics, pulsating tubing and conduits
  • Ideal use for temporarily fixation for presentations, concerts, theatres, exhibitions
  • Long lifetime when used indoor
  • Remains flexible even at cold temperatures (-20 °C)
Show more

Request your individual offer now

Application The SRT range offers solutions to numerous bundling applications. The soft, flexible material makes these ties particularly suitable for use on data and fibre-optic cables. The elasticity of the material makes them ideal for securing young trees to support poles, and other applications within the gardening and landscaping industry.
Colour Black (BK)
Fixation Method Releasable Cable Tie
Identification Plate Position none
Key product features releasable, for multiple routing
Local order number SRT2607-TPU-BK-Z
Material Thermoplastic Polyurethane (TPU)
PART DESCRIPTION SOFTFIX S-TPU-BK

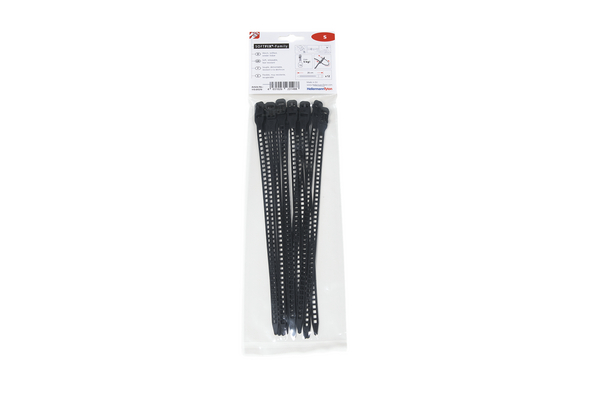

Pack Cont. 12pcs.
Package Content packed in Pack
Product Family SOFTFIX-Family
Product Group Cable Ties without serration in flexible TPU
Releasable Closure (Yes/No) Yes
Short Description Cable Ties without serration in flexible TPU 260x7.0 black
Tie Closure ladder style
Type SOFTFIX S
Variant Not Serrated
Bundle Diameter max (metric) 70.0mm
Bundle ∅ 70.0mm
Length (L) 260mm
Min.Tensile Strength 57N
Thickness (T) 1.7mm
Weight/Unit 0.003554kg
Width (W) 7.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Reusable (Yes/No) Yes
Specifications
Country of Origin AT
Customs Number 39269097
GTIN-13 / EAN 4031026231488
Packaging 1 - Height (m) 0.015m
Packaging 1 - Length (m) 0.37m
Packaging 1 - Qty 12
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00056
Packaging 1 - Weight (kg) 0.048674kg
Packaging 1 - Width (m) 0.1m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
