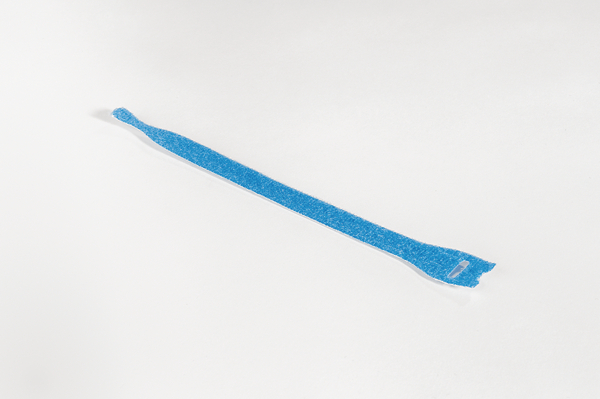

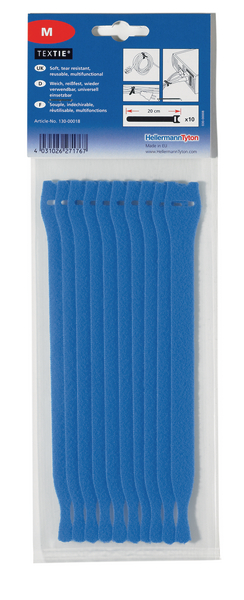

Hook and loop cable tie, 200x12.5mm, Dmax=60.0mm, blue, 10pcs.
Art.-No. 130-00018 | TEXTIE M-PA66/PP-BU Details

  • Quick and simple to use without tools
  • Reusable up to 400 times
  • Various colours for easy identification
  • For indoor and outdoor use
  • Can be attached to the bundle permanently
  • Resistant to ageing, no corrosion
Show more

Request your individual offer now

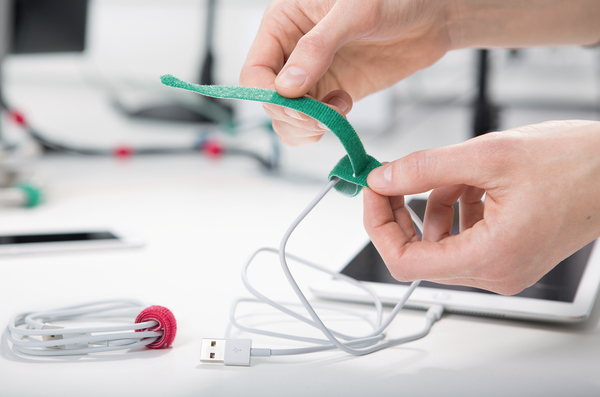

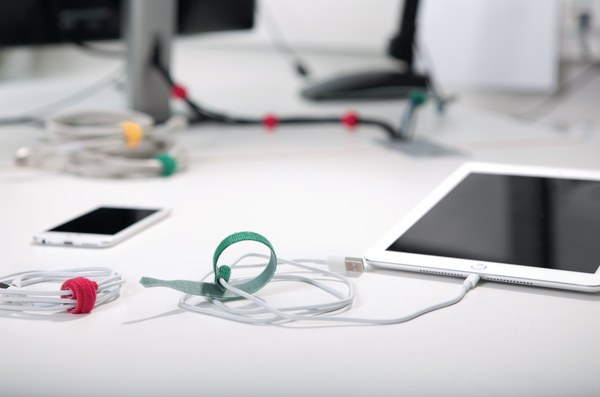

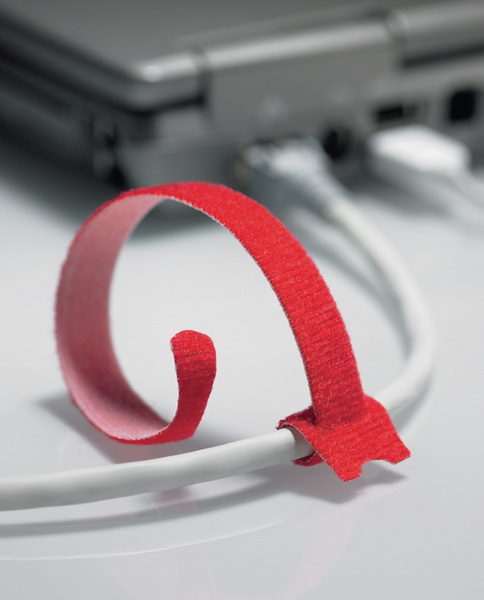

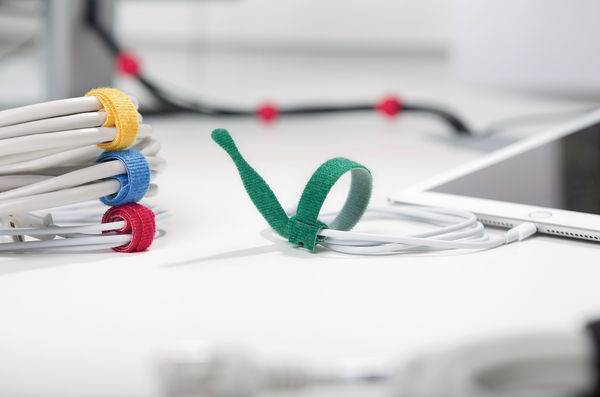

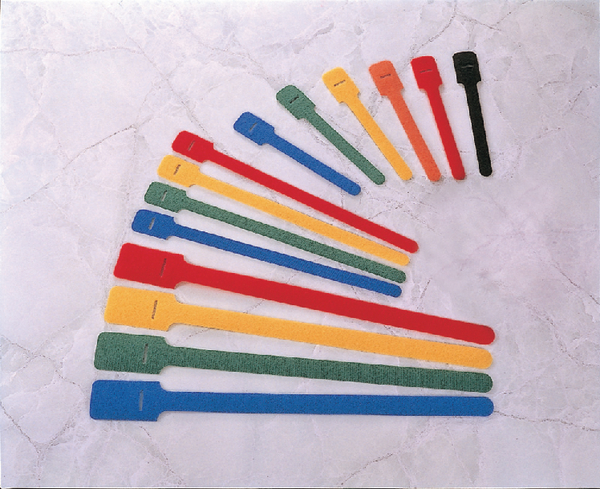

Application The TEXTIE-Series offers a soft bundling method and is ideal for use on telephone cables, optical fibre and network cables. These cable ties can be reopened and reused up to 400 times. A perfect solution for temporary installations and cable management for stage equipment, at outdoor events or for prototype harnessing. Also suitable for use in private or office applications. TEXTIE cable ties are available in various colours and can be used to colour-code cables and/or wires.
Colour Blue (BU)
Fixation Method Releasable Cable Tie
Identification Plate Position none
Key product features releasable
Local order number TEXTIEM-BU
Material Polyamide 6.6 (PA66), Polypropylene (PP)
Material Hook Polypropylene (PP)
Material Loop Polyamide 6.6 (PA66)
Material Shortcut Hook PP
Material Shortcut Loop PA
PART DESCRIPTION TEXTIE M-PA66/PP-BU
Pack Cont. 10pcs.
Package Content packed in Bag

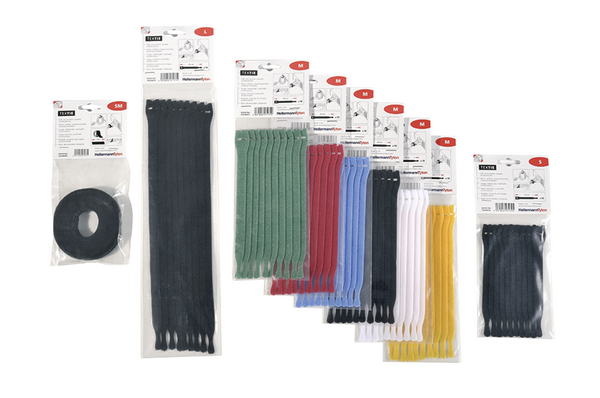

Product Family TEXTIE-Series
Product Group Hook and loop ties
Releasable Closure (Yes/No) Yes
Short Description Hook and Loop Tie 200x12.5 blue

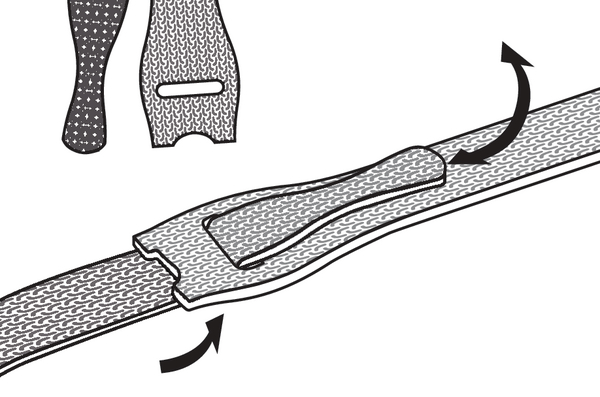

Tie Closure hook and loop
Type TEXTIE M
Variant Grip Tie
Bundle Diameter max (metric) 60.0mm
Bundle ∅ 60.0mm

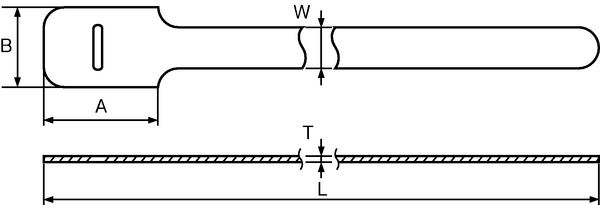

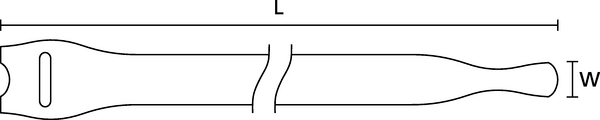

Length (L) 200mm
Thickness (T) 1.3mm
Weight/Unit 0.0018kg
Width (W) 12.5mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin ES
Customs Number 63079010
GTIN-13 / EAN 4031026271767
Minimum Order Quantity 1
Packaging 1 - Height (m) 0.005m
Packaging 1 - Length (m) 0.295m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00015
Packaging 1 - Weight (kg) 0.018001kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.288m
Packaging 3 - Qty 500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0087
Packaging 3 - Weight (kg) 1.03005kg
Packaging 3 - Width (m) 0.178m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 51000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 126.06kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
