For hard, smooth surface applications, we recommend the use of our LFPC protective channels.

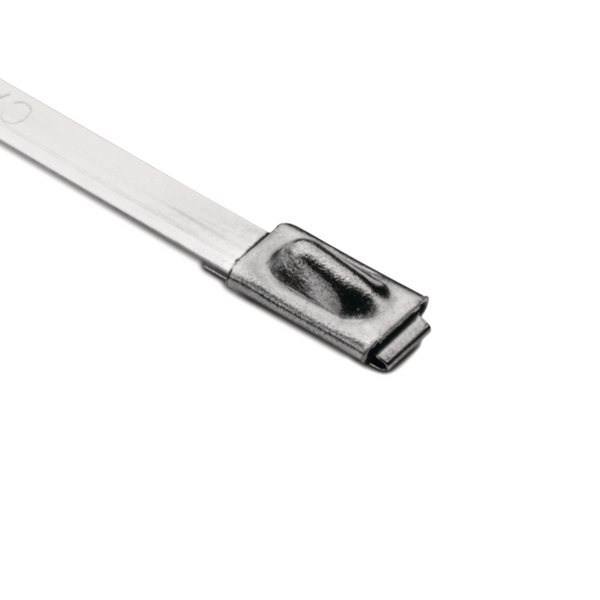

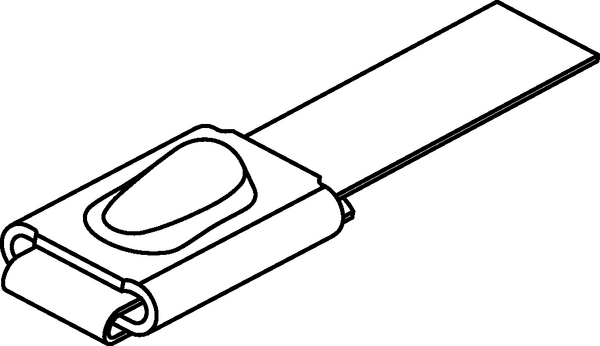

Stainless steel cable tie, ball bearing lock, 362.0x4.6mm, ∅17.0-102.0mm, metal, 100pcs.
Art.-No. 111-93148
| MBT14SS-SS304-ML
|
Details
- Cable ties MBT, made from stainless steel 304
- Non-releasable locking feature
- Corrosion resistant
- Weather resistant
- Outstanding chemical resistance
- High temperature resistant
- Non-burning
Request your individual offer now
Request quote
More products in this product group:
| Application | Metal ties are ideal for all applications that require high strength, reliability and fire resistance. The MBT range of stainless steel cable ties can be used in chemical industries and on oil platforms as well as in mass transit, shipbuilding and mining industries. MBT ties are also suitable for machine building, construction and in the outside area of radio technology. Additionally MBT ties are ideal for securing lighting in theatres and exhibition halls. |
| Colour | Metal (ML) |
| Identification Plate Position | none |
| Internet Customer Notice | For hard, smooth surface applications, we recommend the use of our LFPC protective channels. |
| Key product features | vibration absorbing |
| Local order number | MBT14S-S.M3P |
| Material | Stainless Steel (SS304) |
| PART DESCRIPTION | MBT14SS-SS304-ML |
| Pack Cont. | 100pcs. |
| Package Content packed in | Bag |
| Product Family | MBT-Series, stainless steel 304 |
| Product Group | Cable ties with ball-lock |
| Releasable Closure (Yes/No) | No |
| Short Description | Metal Cable Tie with Ball-Lock 362x4.6 mm |
| Tie Closure | ball bearing lock |
| Type | MBT14SS |
| Variant | Not Serrated |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | non-burning |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Limited Fire Hazard | Yes |
| Operating Temperature | -80 °C to +538 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | GB |
| Customs Number | 73269098 |
| GTIN-13 / EAN | 5022660157509 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.393m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00124m³ |
| Packaging 1 - Weight (kg) | 0.470001kg |
| Packaging 1 - Width (m) | 0.09m |
| Packaging 3 - Height (m) | 0.14m |
| Packaging 3 - Length (m) | 0.41m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0184m³ |
| Packaging 3 - Weight (kg) | 19.3kg |
| Packaging 3 - Width (m) | 0.32m |
| Packaging 4 - Height (m) | 1.125m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 168000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.08m³ |
| Packaging 4 - Weight (kg) | 831.6kg |
| Packaging 4 - Width (m) | 0.8m |
