For hard, smooth surface applications, we recommend the use of our LFPC protective channels.

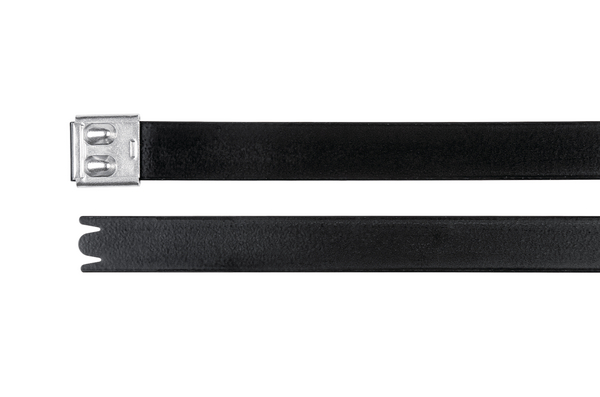

Stainless steel cable tie, ball bearing lock, 575x16mm, ∅25-168mm, black, 50pcs.
Art.-No. 111-01515
| MBT23UHFC-SP/SS316L-BK
|
Details
- Fully coated MBT, made from type 316 stainless steel with polyester coating
- Non-releasable locking feature
- Coated cable tie with smooth edges
- Comfortable handling and installation
- Eliminates contact corrosion between dissimilar materials during application
Request your individual offer now
Request quote
More products in this product group:
| Application | The MBT range of stainless steel cable ties can be used in the most arduous of conditions or where the additional security, strength and fire resistance of a metal fixing is required. Used in all industries from mass transit, ship building, oil rigs, mining and chemical industry, theatres and exhibition halls. In the event of a fire, cables will remain securely held in place and will not fall to block emergency exits. Fully coated ties can also be used to avoid any reflection. An important consideration for instance in the defence industry. |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Internet Customer Notice | For hard, smooth surface applications, we recommend the use of our LFPC protective channels. |
| Key product features | vibration absorbing |
| Local order number | MBT23UHFC.M2P |
| Material | Polyester (SP), Stainless Steel (SS316L) |
| PART DESCRIPTION | MBT23UHFC-SP/SS316L-BK |
| Pack Cont. | 50pcs. |
| Package Content packed in | Bag |
| Product Family | MBT-FC-Series, stainless steel 316 |
| Product Group | Cable ties with ball-lock and coating |
| Releasable Closure (Yes/No) | No |
| Short Description | Stainless Steel Cable Tie with Ball-Lock and Coating 575x16 mm, black |
| Tie Closure | ball bearing lock |
| Type | MBT23UHFC |
| Variant | Not Serrated |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | non-burning (except coating) |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Limited Fire Hazard | Yes |
| Operating Temperature | -80 °C to +538 °C |
| Operating Temperature Coating | -50 °C to +150 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | GB |
| Customs Number | 73269098 |
| GTIN-13 / EAN | 5022660341687 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.389m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00123m³ |
| Packaging 1 - Weight (kg) | 1.500001kg |
| Packaging 1 - Width (m) | 0.09m |
| Packaging 3 - Height (m) | 0.115m |
| Packaging 3 - Length (m) | 0.9m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0269m³ |
| Packaging 3 - Weight (kg) | 15.5kg |
| Packaging 3 - Width (m) | 0.26m |
| Packaging 4 - Height (m) | 0.949m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 10500 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.911m³ |
| Packaging 4 - Weight (kg) | 346.5kg |
| Packaging 4 - Width (m) | 0.8m |
