For hard, smooth surface applications, we recommend the use of our LFPC protective channels.

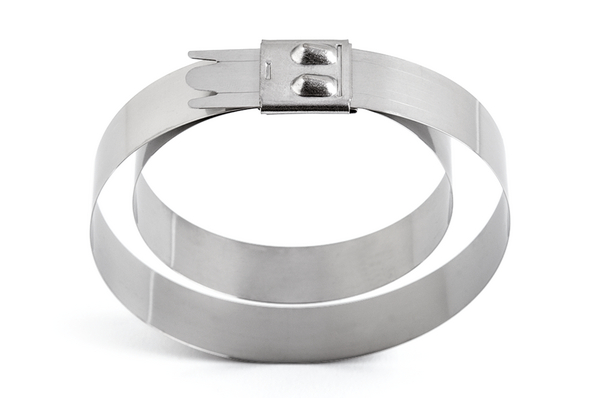

Stainless steel cable tie, ball bearing lock, 1245x12.3mm, ∅17-180mm, metal, 25pcs.
Art.-No. 111-01310 | MBT49XHD-SS316L-ML |  Details

Double wrap stainless steel cable ties, uncoated MBT_UHD.

    • MBT ties made from stainless steel SS304 or SS316
    • Can be wrapped around the bundle twice
    • For improved tensile strength to withstand enormous applied loads
    • Patented non-releasable locking feature with two balls
    • Corrosion resistant
    • Weather resistant
    • Outstanding chemical resistance
    • Antimagnetic
    • High temperatur resitant
    • Non-burning
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Metal ties are predestinated for all areas with requirements for high holding force, reliability and fire resistance. The double band ties of the MBT-series are used in applications where a fixing requires an extraordinary high tensile strength. This may be required on oil platfrom as well as in shipbuilding, mining and railway industry.
    Colour Metal (ML)
    Identification Plate Position none
    Internet Customer Notice For hard, smooth surface applications, we recommend the use of our LFPC protective channels.
    Key product features vibration absorbing
    Local order number MBT49XHD.M9P
    Material Stainless Steel (SS316L)
    PART DESCRIPTION MBT49XHD-SS316L-ML
    Pack Cont. 25pcs.
    Package Content packed in Bag
    Product Family MBTXHD- / MBTUHD-Series, stainless steel 316L
    Product Group Double wrap cable ties with ball-lock
    Releasable Closure (Yes/No) No
    Short Description Double Wrap Metal Cable Ties with Ball-Lock 1245x12.3 mm
    Tie Closure ball bearing lock
    Type MBT49XHD
    Variant Not Serrated
    Bundle Diameter max (metric) 180mm
    Bundle ∅ 17-180mm
    Bundle ∅ min. 17mm
    Length (L) 1245mm
    Min.Tensile Strength 5000N
    Thickness (T) 0.27mm
    Weight/Unit 0.04kg
    Width (W) 12.3mm
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    Limited Fire Hazard Yes
    Operating Temperature -80 °C to +538 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 73269098
    GTIN-13 / EAN 5022660339608
    Packaging 1 - Height (m) 0.025m
    Packaging 1 - Length (m) 0.153m
    Packaging 1 - Qty 25
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00034m³
    Packaging 1 - Weight (kg) 1.0kg
    Packaging 1 - Width (m) 0.088m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
