For hard, smooth surface applications, we recommend the use of our LFPC protective channels.

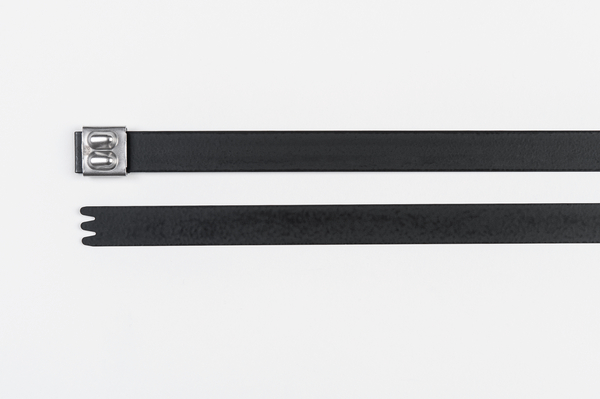

Stainless steel cable tie, ball bearing lock, 1524x12.3mm, ∅17-230mm, black, 25pcs.
Art.-No. 111-01509 | MBT60XHDFC-SS316L/SP-BK |  Details

    • MBT cable ties, made from stainless steel SS316 with a polyester coating
    • Non-releasable locking feature
    • Double wrap operation
    • Corrosion resistant
    • Weather resistant
    • Outstanding chemical resistance
    • High temperature resistant
    • Non-burning
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application The MBT range of stainless steel cable ties can be used in the most arduous of conditions or where the additional security, strength and fire resistance of a metal fixing is required. Used in all industries from mass transit, ship building, oil rigs, mining and chemical industry, theatres and exhibition halls. In the event of a fire, cables will remain securely held in place and will not fall to block emergency exits. Fully coated ties can also be used to avoid any reflection. An important consideration for instance in the defence industry.
    Colour Black (BK)
    Identification Plate Position none
    Internet Customer Notice For hard, smooth surface applications, we recommend the use of our LFPC protective channels.
    Key product features vibration absorbing
    Local order number MBT60XHDFC.M9P
    Material Stainless Steel (SS316L), Polyester (SP)
    PART DESCRIPTION MBT60XHDFC-SS316L/SP-BK
    Pack Cont. 25pcs.
    Package Content packed in Bag
    Product Family MBTXHDFC- / MBTUHDFC-Series, stainless steel 316
    Product Group Double wrap cable ties with ball-lock and coating
    Releasable Closure (Yes/No) No
    Short Description Stainless Steel Cable Tie 1524x12.3 mm, black
    Tie Closure ball bearing lock
    Type MBT60XHDFC
    Variant Not Serrated
    Bundle Diameter max (metric) 230mm
    Bundle ∅ 17-230mm
    Bundle ∅ min. 17mm
    Length (L) 1524mm
    Min.Tensile Strength 2500N
    Thickness (T) 0.38mm
    Weight/Unit 0.04496kg
    Width (W) 12.3mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability non-burning (except coating)
    Halogen-free Yes
    Hazardous Goods No
    Limited Fire Hazard Yes
    Operating Temperature -80 °C to +538 °C
    Operating Temperature Coating -50 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 73269098
    GTIN-13 / EAN 5022660341625
    Packaging 1 - Height (m) 0.02m
    Packaging 1 - Length (m) 1.56m
    Packaging 1 - Qty 25
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00312m³
    Packaging 1 - Weight (kg) 1.124kg
    Packaging 1 - Width (m) 0.1m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
