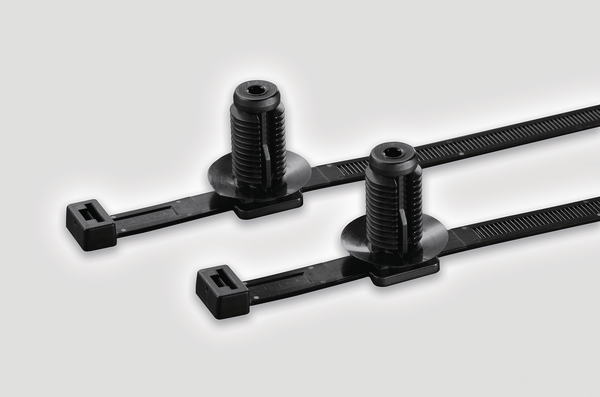

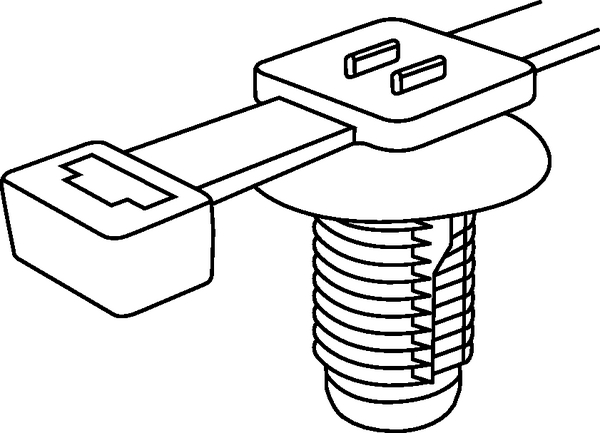

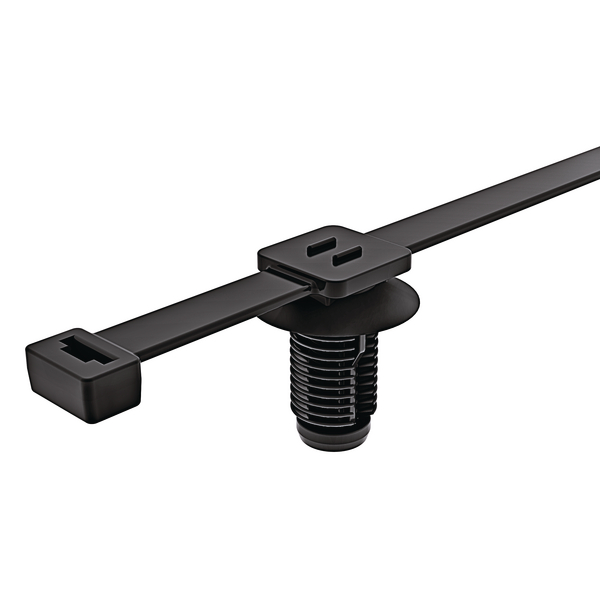

Fixing tie for hole (round), ∅15-30.0mm, black, 100pcs.
Art.-No. 157-00086 | CM170FT11J-PA66W-BK |  Details

CM170-FT11J-W

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Local order number CM170-FT11J-W
    Material Polyamide 6.6, UV-resistant (PA66W)
    PART DESCRIPTION CM170FT11J-PA66W-BK
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family Fir Tree Parts FT11
    Product Group 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type CM170FT11J

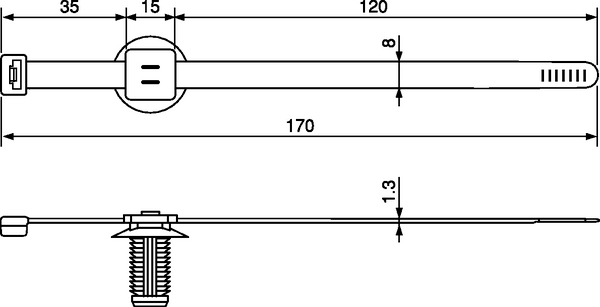

    Bundle Diameter max (metric) 30.0mm
    Bundle ∅ 15-30.0mm
    Bundle ∅ min. 15mm
    Disc ∅ 16,0mm
    Length (L) 170mm
    Min.Tensile Strength 250N
    Thickness (T) 1.3
    Width (W) 8.0mm
    for Hole ∅ (FH) 10.8 - 11.2 mm
    for Panel Thickness min - max 3 - 14 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387959963
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
