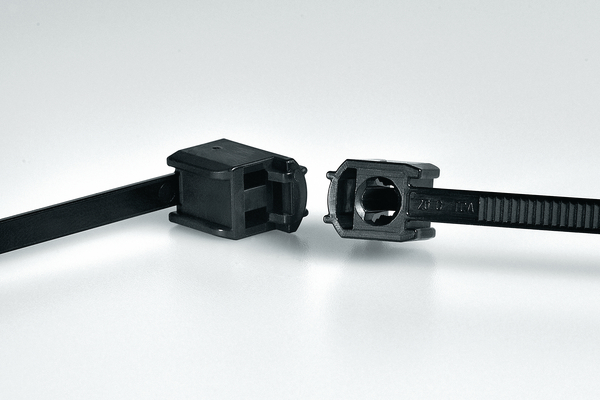

Fixing tie for stud, inside serrated, ∅6.0-26.0mm, black, 560pcs.
Art.-No. 131-60070 | LFC155-PA66-BK |  Details

LFC165-2 for bundle diamters up to 35.0 mm

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet

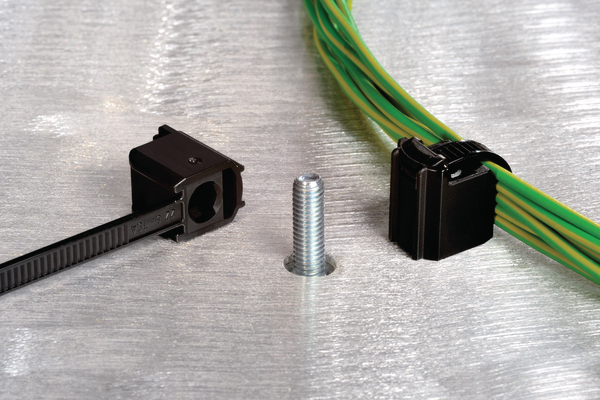

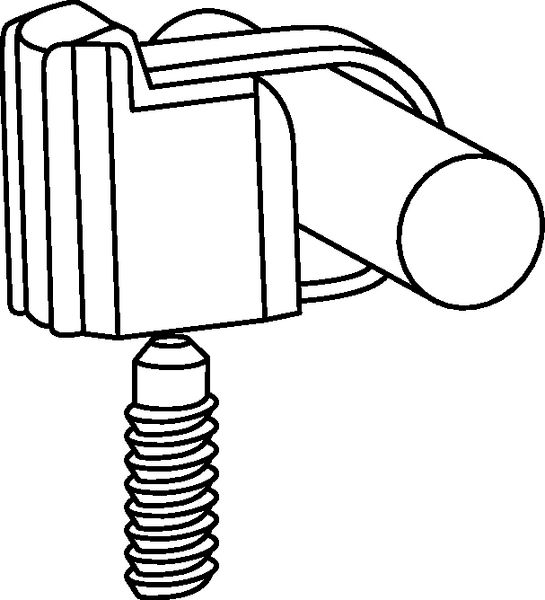

    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Local order number LFC155-N66-BK-DW0
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION LFC155-PA66-BK
    Pack Cont. 560pcs.
    Package Content packed in Bag
    Product Family LFC-Series for routing close to the stud
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Short Description 1-Piece Fixing Tie for Weld Studs PA66 200x6.0 black
    Tie Closure plastic pawl
    Type LFC155
    Variant Inside Serrated
    Bundle Diameter max (metric) 26.0mm
    Bundle ∅ 6.0-26.0mm
    Bundle ∅ min. 6.0mm
    Height (H) 1.30mm
    Height (H2) 14.0mm
    Length (L) 163mm
    Max Stud Length 9.0mm
    Min.Tensile Strength 160N
    Stud ∅ 5.0 mm
    Thickness (T) 1.3mm
    Weight/Unit 0.00173kg
    Width (W) 4.6mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026204949
    Packaging 1 - Height (m) 0.17m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 560
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01199m³
    Packaging 1 - Weight (kg) 0.968801kg
    Packaging 1 - Width (m) 0.235m
    Packaging 3 - Height (m) 0.538m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 5600
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.1213m³
    Packaging 3 - Weight (kg) 10.78801kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.22m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 44800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.171m³
    Packaging 4 - Weight (kg) 107.304kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
