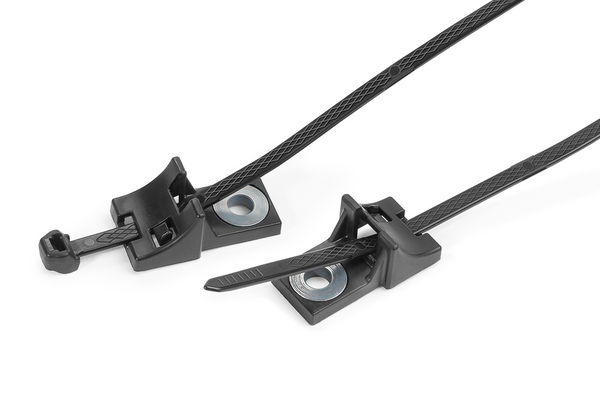

Fixing tie for screw fixation, outside serrated, ∅5.0-45.0mm, black, 500pcs.
Art.-No. 156-03593 | S50ROSCPCM6-PP/PA66HIRHS-BK Details

  • Pre-assembled 2-piece fixing tie with srew mount
  • Cable tie head can be moved after bundling
  • The S50ROS features a significantly lower CO₂ footprint compared to cable ties made of standard material, in line with sustainability goals in various industries
  • The outside serration design ensures gentle handling of sensitive cables and bundles, reducing the risk of damage during installation and maintenance
  • With an anti-slip feature on the inside, the S50ROS prevents undesired lateral movement of cables and bundles, maintaining tidy and organized cable management within vehicles
  • For srew fixation M6
Show more

Request your individual offer now

Application S-Series cable ties made from Polypropylene (PP) are non hydroscopic, offer a higher chemical resistance and reduced CO2 footprint compared to a standard cable tie material. These cable ties are used to bundle and secure cables, pipes and/or hoses.
Cable Tie Polypropylene (PP)
Colour Black (BK)
Fixation Method Screw Mount
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Material Polypropylene (PP), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Mounting Screw Type M6 Screw, #10 (M6) Screw
PART DESCRIPTION S50ROSCPCM6-PP/PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family with mount CPC M6
Product Group 2-piece fixing tie for screws
Releasable Closure (Yes/No) No
Short Description CO2 reduced cable tie "S50ROS" with an Mount for screw fixation 6 mm.
Tie Closure plastic pawl
Type S50ROSCPCM6
Variant Outside Serrated with AntiSlip Engraving
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 5.0-45.0mm
Bundle ∅ min. 5.0mm

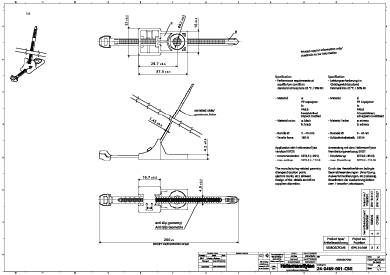

Cable Tie Head Height (metric) 7.5mm
Cable Tie Head Length (metric) 8.3mm
Cable Tie Head Width (metric) 8.95mm
Height (H) 1.45mm
Height (H2) 4.2mm
Length (L) 200.00mm
Length (L2) 37.5mm
Min.Tensile Strength 185N
Thickness (T) 1.45mm
Weight/Unit 0.005976kg
Width (W) 4.90mm
Width (W2) 20.0mm
Width (W3) 16.2mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +110 °C, (3000 h)
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026752501
Packaging 1 - Height (m) 0.12m
Packaging 1 - Length (m) 0.55m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.03168
Packaging 1 - Weight (kg) 3.031597kg
Packaging 1 - Width (m) 0.48m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.946388kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 24000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 176.376kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
