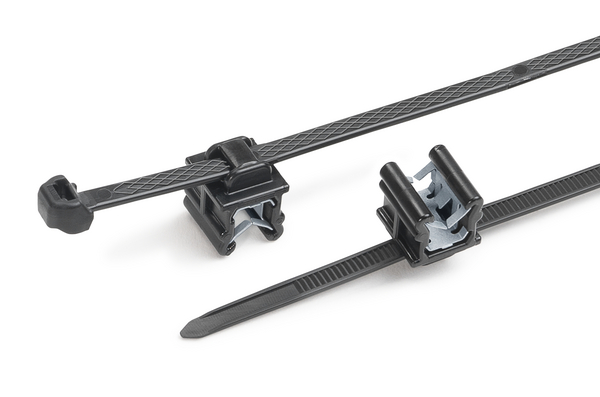

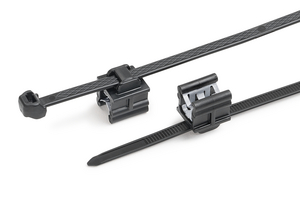

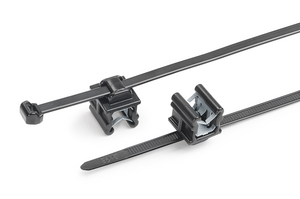

Fixing tie for edge, outside serrated, ∅1.0-45.0mm, black, 500pcs.
Art.-No. 156-03577 | S50ROSEC20-PP/PA66HIRHS-BK | Details

Pre-assembled 2-piece fixing tie with EdgeClip
Cable tie head can be moved after bundling
The S50ROS features a significantly lower CO₂ footprint compared to cable ties made of standard material, in line with sustainability goals in various industries
The outside serration design ensures gentle handling of sensitive cables and bundles, reducing the risk of damage during installation and maintenance

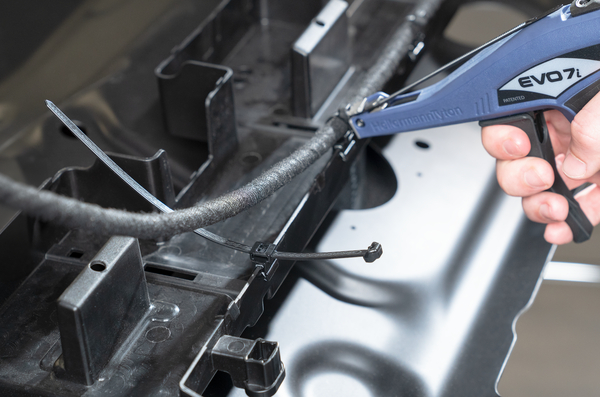

With an anti-slip feature on the inside, the S50ROS prevents undesired lateral movement of cables and bundles, maintaining tidy and organized cable management within vehicles
For edges of 3 – 6 mm

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads Datasheet

More products in this product group:

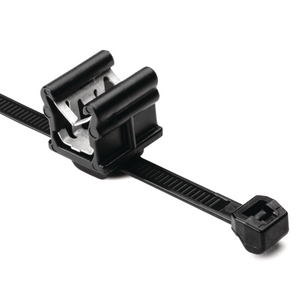

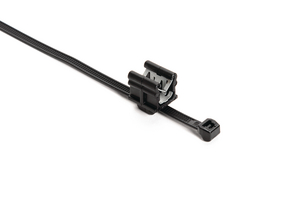

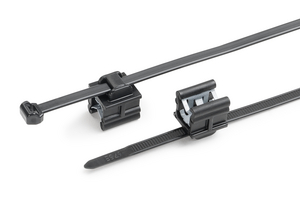

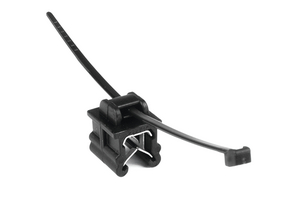

2-piece fixing ties for edges >

Base Data

Application	S-Series cable ties made from Polypropylene (PP) are non hydroscopic, offer a higher chemical resistance and reduced CO2 footprint compared to a standard cable tie material. These cable ties are used to bundle and secure cables, pipes and/or hoses.
Cable Tie	Polypropylene (PP)
Colour	Black (BK)

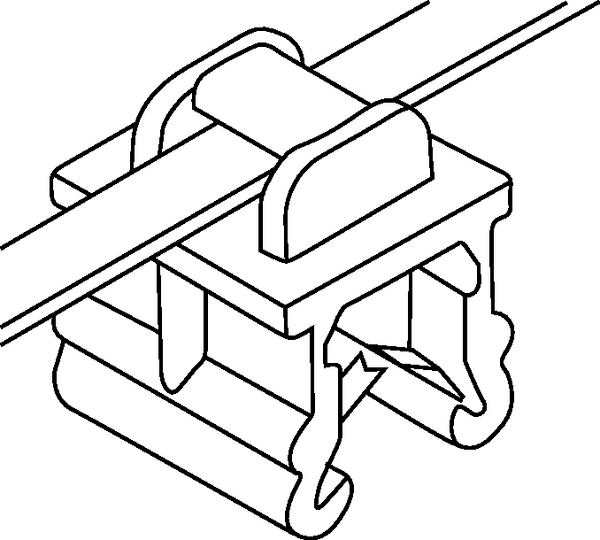

Description	Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 3.0 to 6.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
Fixation Method	EdgeClip, top, assembled, 2 piece
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position	none
Key product features	small diameter, for narrow bundling
Material	Polypropylene (PP), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	S50ROSEC20-PP/PA66HIRHS-BK
Pack Cont.	500pcs.
Package Content packed in	Bag
Product Family	EdgeClip-Series, 3.0 - 6.0 mm, top fixing
Product Group	2-piece fixing ties for edges
Releasable Closure (Yes/No)	No
Short Description	2-Piece Fixing Tie 200x4.9, for Edges 3-6 mm, black
Tie Closure	plastic pawl
Type	S50ROSEC20
Variant	Outside Serrated with AntiSlip Engraving

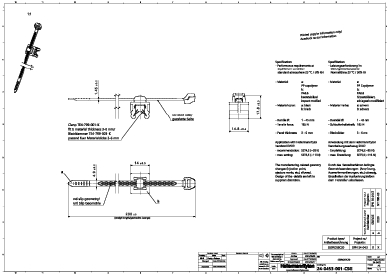

Product Dimensions

Bundle Diameter max (metric)	45.0mm
Bundle ∅	1.0-45.0mm
Bundle ∅ min.	1.0mm
Cable Tie Head Height (metric)	7.5mm
Cable Tie Head Length (metric)	8.3mm
Cable Tie Head Width (metric)	8.95mm
Height (H)	1.45mm
Height (H2)	17.8mm
Length (L)	200.00mm
Length (L2)	14.8mm
Min.Tensile Strength	185N
Panel Thickness max.	3.0 - 6.0mm
Thickness (T)	1.45mm
Weight/Unit	0.003321kg
Width (W)	4.90mm
Width (W2)	14.0mm
for Panel Thickness min - max	3 - 6 mm

Downloads

Specifications

ELV compliant Dir. Art. 4 (2)	YES
Hazardous Goods	No
Operating Temperature	-40 °C to +110 °C, (3000 h)
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	PL
Customs Number	39269097
GTIN-13 / EAN	4031026752396
Packaging 1 - Height (m)	0.11m
Packaging 1 - Length (m)	0.35m
Packaging 1 - Qty	500
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.01271m³
Packaging 1 - Weight (kg)	1.704097kg
Packaging 1 - Width (m)	0.33m
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	3000
Packaging 3 - Type	Box
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	11.044582kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	36000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	153.564kg
Packaging 4 - Width (m)	0.8m
