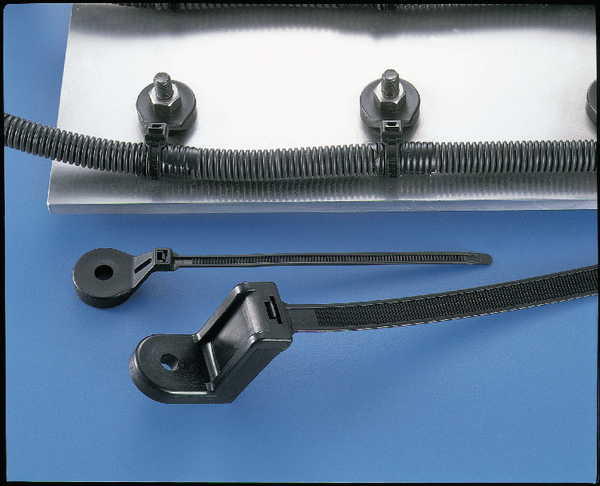

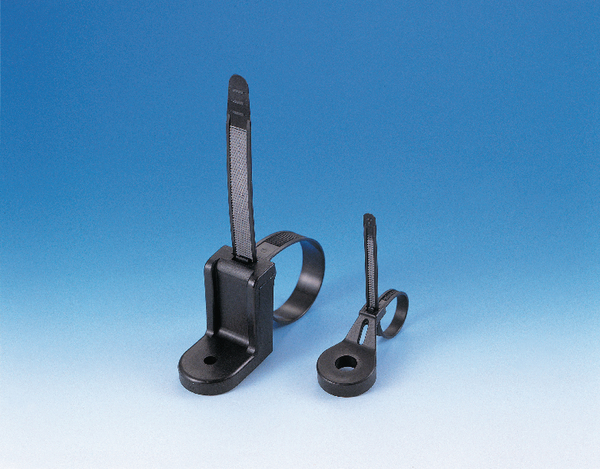

Fixing tie for stud, ∅5.0-35.0mm, black, 50pcs.
Art.-No. 157-00025 | SBT50-M12-PA66HSUV-BK | Details

One-piece fixing ties
High specification materials
Superior design
Suitable for complex applications

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads Datasheet

More products in this product group:

1-piece fixing ties for weld studs >

Base Data

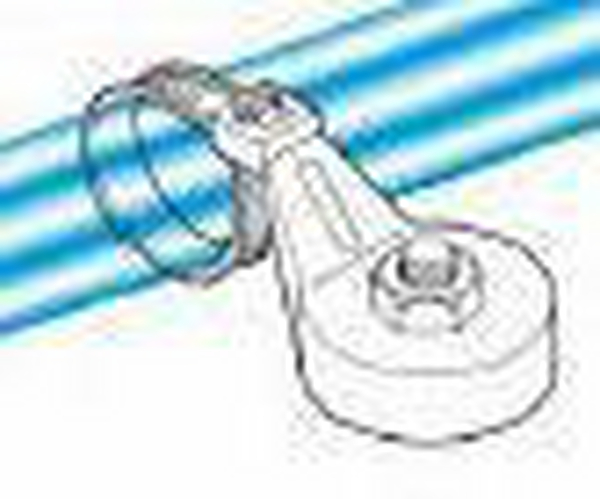

Application	Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
Colour	Black (BK)
Fixation Method	Weld Stud Fixing
Identification Plate Position	none
Local order number	SBT50-M12
Material	Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
Mounting Screw Type	M12 Screw
PART DESCRIPTION	SBT50-M12-PA66HSUV-BK
Pack Cont.	50pcs.
Product Family	Studbolt Tie series
Product Group	1-piece fixing ties for weld studs
Releasable Closure (Yes/No)	Yes
Tie Closure	plastic pawl
Type	SBT50-M12

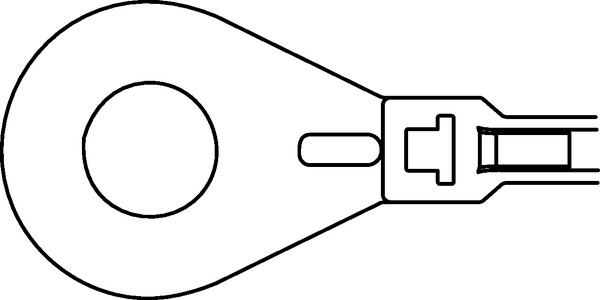

Product Dimensions

Bundle Diameter max (metric)	35.0mm
Bundle ∅	5.0-35.0mm
Bundle ∅ min.	5.0mm
Length (L)	180.0mm
Min.Tensile Strength	222.3N
Stud ∅	M12
Thickness (T)	1.4mm
Width (W)	6.0mm
for Hole ∅ (FH)	12.2 mm

Downloads

Specifications

Flammability	UL 94 V2
Operating Temperature	-40 °C to +110 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	JP
GTIN-13 / EAN	4944387931136

More Information

ETIM 7.0 Key	EC000046
ETIM 8.0 Key	EC000046
ETIM 9.0 Key	EC000046
UNSPSC Key	39121717
