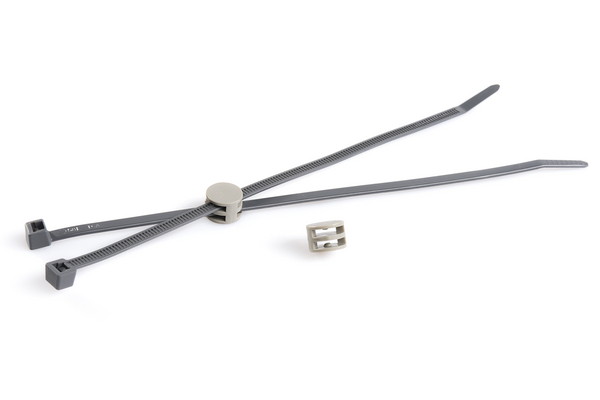

Fixing tie for cable bundles, inside serrated, ∅10.0-105.0mm, grey, 250pcs.
Art.-No. 156-02416 | T120RCOUPLER-PA46-GY |  Details

    • Pre-assembled 2-piece fixing tie with coupler
    • Cable tie head can be moved after bundling
    • Easy addition of cables after assembly
    • For parallel routing of bundles that can be twisted 90° even after installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Grey (GY)
    Description The Coupler is the simple way to connect two cable ties for a parallel routing of two bundles. His special design allows the ties 90 degrees of rotation. This is ideal for all applications where the cable, pipe or hose should move flexible in relation to the fixing point. The Coupler can be used with one or two cable ties. This allows easily subsequent installation or replacements of further cables, pipes or hose.
    Identification Plate Position none
    Key product features for multiple routing
    Local order number 156-02416
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T120RCOUPLER-PA46-GY
    Pack Cont. 250pcs.
    Package Content packed in Bag
    Product Family twistable up to 90°
    Product Group 2-piece fixing ties for parallel separation
    Tie Closure plastic pawl
    Type T120RCOUPLER
    Variant Inside Serrated
    Bundle Diameter max (metric) 105.0mm
    Bundle ∅ 10.0-105.0mm
    Bundle ∅ min. 10.0mm
    Length (L) 390mm
    Min.Tensile Strength 535N
    Strap Width max. (G) 7.6mm
    Strap Width max. (G) (imperial) 0.3
    Width (W) 7.6mm
    ∅ max. 1. loop 100.0mm
    ∅ per loop max. 100.0mm
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026602868
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
