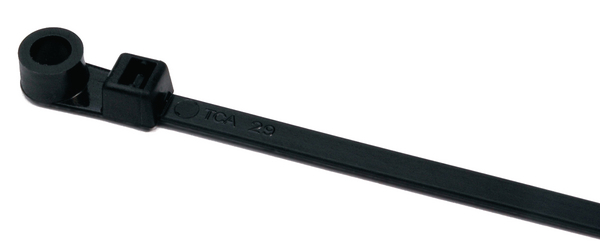

Fixing tie for screw fixation, inside serrated, ∅1.5-32.0mm, black, 100pcs.
Art.-No. 113-00004
| T30MR-PA66-BK
|
Details
- One-piece bundling and fixing tie
- Quick and easy installation
More products in this product group:
| Application | This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is fitted to the panel first and then the cables can be added. |
| Colour | Black (BK) |
| Fixation Method | Fixing hole |
| Identification Plate Position | none |
| Local order number | T30MR.NB3P |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | T30MR-PA66-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | Bag |
| Product Family | MR Series |
| Product Group | 1-piece fixing ties with mounting head for screws |
| Releasable Closure (Yes/No) | No |
| Short Description | Fixing tie 160x3.5 mm, screwable (4.3 mm), black |
| Tie Closure | plastic pawl |
| Type | T30MR |
| Variant | Inside Serrated |
Download
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, csa-C22.2 no. 18.5, csa-C22.2 no. 62275 |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL Type | 11 |
| UL-File Number | E64963 |
