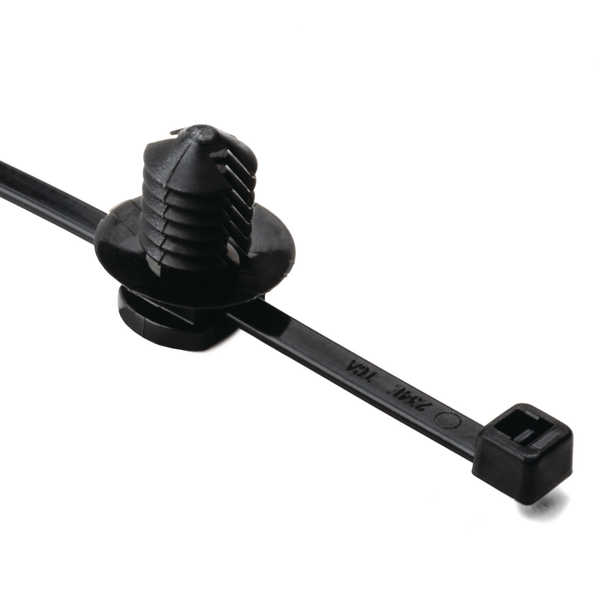

Fixing tie for hole (round), inside serrated, ∅4.0-32.0mm, black, 500pcs.
Art.-No. 111-85881
| T30RFT8-PA66HS-BK
|
Details
- Pre-assembled 2-piece fixing tie with fir tree foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Fixation Method | Fir tree for round holes |
| Foot Part | Polyamide 6.6, heat stabilised (PA66HS) |
| Identification Plate Position | none |
| Local order number | T30RFT8.HB6P |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T30RFT8-PA66HS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| Product Family | Fir tree parts FT8 |
| Product Group | 2-piece fixing ties with fir tree, with disc, for round holes |
| Tie Closure | plastic pawl |
| Type | T30RFT8 |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 32.0mm |
| Bundle ∅ | 4.0-32.0mm |
| Bundle ∅ min. | 4.0mm |
| Disc ∅ | 16.0mm |
| Height (H) | 1.10mm |
| Height (H2) | 11.50mm |
| Length (L) | 150mm |
| Length (L2) | 12.0mm |
| Min.Tensile Strength | 135N |
| Panel Thickness max. | 0.8 - 6.0mm |
| Weight/Unit | 0.00133kg |
| Width (W) | 3.6mm |
| Width (W2) | 9.0mm |
| for Hole ∅ (FH) | 7.7 - 8.0 mm |
| for Panel Thickness min - max | 0.8 - 6 mm |
| for Panel Thickness min - max | 0 - 0.2 " |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| Operating Temperature Foot Part (Metric) | -40 °C to +105 °C, (+145 °C, 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UV-Stabilised | No |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026206813 |
| Packaging 1 - Height (m) | 0.09m |
| Packaging 1 - Length (m) | 0.27m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00632m³ |
| Packaging 1 - Weight (kg) | 0.686815kg |
| Packaging 1 - Width (m) | 0.26m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 6000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 9.06178kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 72000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 129.768kg |
| Packaging 4 - Width (m) | 0.8m |
