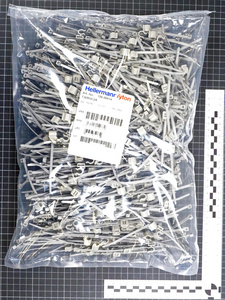

Fixing tie for cable bundles/with pipe/tube holder, inside serrated, ∅4.0-31.0mm, grey, 500pcs.
Art.-No. 156-00014 | T30ROC2A-PA46-GY |  Details

Pipe Clip T30ROC2A for post-installation of additional cables for preassembled cable looms.

    • For post-installation of additional cables for preassembled cable looms
    • Variety of twist angles and even different loop directions provide flexibility for cable routing
    • For OC1 and 2A additional cable tie dimensions are available
    • CBTO-series for cable ties up to 5 mm
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Cable Tie Polyamide 4.6 (PA46)
    Colour Grey (GY)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features for multiple routing, removable
    Local order number T30ROC2.RE6
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T30ROC2A-PA46-GY
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family T30ROC2A for Pipediameter 6.5 - 7.5 mm
    Product Group 2-piece fixing ties with pipe clip
    Type T30ROC2A
    Attach to Diameter 0.26 - 0.30 "
    Attach to Ø 6.5 - 7.5
    Bundle Diameter max (metric) 31.0mm
    Bundle ∅ 4.0-31.0mm
    Bundle ∅ min. 4.0mm
    Length (L) 148.0mm
    Min.Tensile Strength 135N
    Weight/Unit 0.001677kg
    Width (W) 3.6mm
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026240732
    Packaging 1 - Height (m) 0.08m
    Packaging 1 - Length (m) 0.44m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01091m³
    Packaging 1 - Weight (kg) 0.860315kg
    Packaging 1 - Width (m) 0.31m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 5000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 5.53815kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 87.48kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
