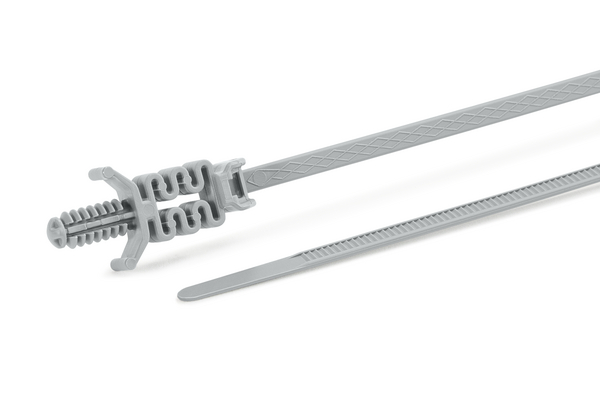

Fixing tie for hole (round), outside serrated, ∅1.0-35.0mm, grey, 1500pcs.
Art.-No. 126-00412 | T30ROSASVDFT4.7LE-PA46-GY |  Details

Our T30ROS-AS-VDFT4.7LE with AntiSlip engraving and vibration damping.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Grey (GY)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Local order number T30ROSASVDFT4.7LE_PA46_GY_19-0154
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T30ROSASVDFT4.7LE-PA46-GY
    Pack Cont. 1500pcs.
    Package Content packed in Bag
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T30ROSASVDFT4.7LE
    Variant Outside Serrated with AntiSlip Engraving
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.0-35.0mm
    Bundle ∅ min. 1.0mm
    Length (L) 174.0mm
    Length (L2) 19.4mm
    Length (L3) 12.7mm
    Min.Tensile Strength 200N
    Offset Length 19.4mm
    Thickness (T) 1.2mm
    Weight/Unit 0.001505kg
    Width (W) 3.45mm
    for Hole ∅ (FH) 4.5 - 5.0 mm
    for Panel Thickness min - max 0.7 - 8 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026660936
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.44m
    Packaging 1 - Qty 1500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01624m³
    Packaging 1 - Weight (kg) 2.301097kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 6000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.024388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 141.312kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
