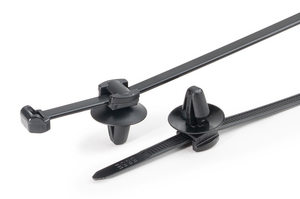

Fixing tie for hole (round), inside serrated, ∅36.0mm, black, 500pcs.
Art.-No. 156-01044 | T30RSFT7H-PA66HS/PA66HIRHS-BK |  Details

Being a two piece assembly allows the tie head to be located in the most convenient position.

    • Pre-assembled 2-piece fixing tie with arrowhead foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method arrowhead
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Local order number T30RSFT7H-HS-BK
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T30RSFT7H-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family 2-piece fixing ties with arrowhead, with disc, for round holes
    Product Group 2-piece fixing ties with arrowhead, with disc
    Tie Closure plastic pawl
    Type T30RSFT7H
    Bundle Diameter max (metric) 36.0mm
    Bundle ∅ 36.0mm
    Disc ∅ 16.0mm
    Length (L) 150.0mm
    Min.Tensile Strength 135N
    Offset Length 27.8mm
    Thickness (T) 1.2mm
    Width (W) 3.5mm
    for Hole ∅ (FH) 6.8 - 7.2 mm
    for Panel Thickness min - max 0.8 - 1.5 mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026457949
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
