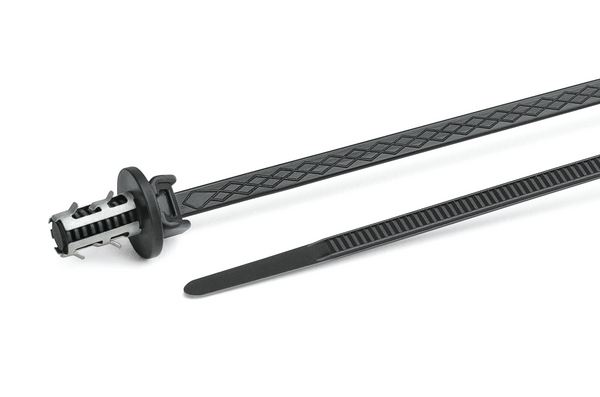

Fixing tie for hole (round), outside serrated, ∅1.0-25.0mm, black, 1500pcs.
Art.-No. 126-00429 | T30SOSASDHA6x11E-PA66HS-BK |  Details

One piece fixing tie for round blind holes.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Black (BK)
    Identification Plate Position none
    Key product features deep hole anchor, small diameter
    Local order number T30SOS-AS-DHA6x11_PA66HS_BK_17-0174
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T30SOSASDHA6x11E-PA66HS-BK
    Pack Cont. 1500pcs.
    Package Content packed in Bag
    Product Family Deep hole anchor T30SOSASDHA6x11E
    Product Group 1-piece fixing ties with deep hole anchor, with disc, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T30SOSASDHA6x11E
    Variant Outside Serrated with AntiSlip Engraving
    Bundle Diameter max (metric) 25.0mm
    Bundle ∅ 1.0-25.0mm
    Bundle ∅ min. 1.0mm
    Disc ∅ 12.0mm
    Hole Depth 11.0mm

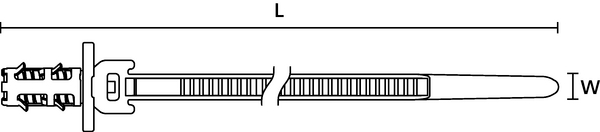

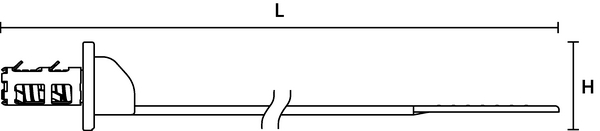

    Length (L) 128.6mm
    Length (L2) 11.0mm
    Min.Tensile Strength 200N
    Thickness (T) 1.2mm
    Weight/Unit 0.001118kg
    Width (W) 3.45mm
    for Hole ∅ (FH) 5.9 - 6.1 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026663838
    Packaging 1 - Height (m) 0.12m
    Packaging 1 - Length (m) 0.24m
    Packaging 1 - Qty 1500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01123m³
    Packaging 1 - Weight (kg) 1.720597kg
    Packaging 1 - Width (m) 0.39m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10500
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 12.864179kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 126000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 175.404kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
