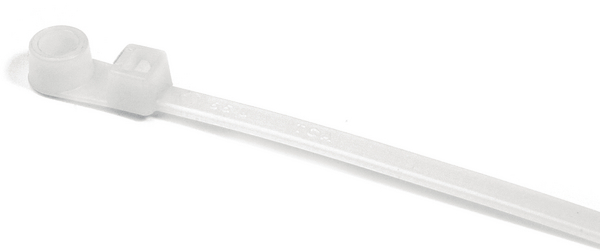

Fixing tie for screw fixation, inside serrated, ∅1.5-32.0mm, natural, 100pcs.
Art.-No. 113-05819
| T50MS-PA66-NA
|
Details
- One-piece bundling and fixing tie
- Quick and easy installation
Request your individual offer now
Request quote
More products in this product group:
| Application | This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is fitted to the panel first and then the cables can be added. |
| Colour | Natural (NA) |
| Fixation Method | Fixing hole |
| Identification Plate Position | none |
| Local order number | T50MS.NN3P |
| Material | Polyamide 6.6 (PA66) |
| Mounting Screw Type | M5 Screw |
| PART DESCRIPTION | T50MS-PA66-NA |
| Pack Cont. | 100pcs. |
| Package Content packed in | pcs. |
| Product Family | M-Series |
| Product Group | 1-piece fixing ties with mounting head for screws |
| Releasable Closure (Yes/No) | No |
| Short Description | Fixing Tie 165x4.6 natural |
| Tie Closure | plastic pawl |
| Type | T50MS |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 32.0mm |
| Bundle ∅ | 1.5-32.0mm |
| Bundle ∅ min. | 1.5mm |
| Cable Tie Head Height (metric) | 5.5mm |
| Cable Tie Head Length (metric) | 20mm |
| Cable Tie Head Width (metric) | 9mm |
| Height (H) | 5.5mm |
| Length (L) | 165mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.2mm |
| Weight/Unit | 0.001482kg |
| Width (W) | 4.6mm |
| for Hole ∅ (FH) | 5.3 mm |
Download
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, csa-C22.2 no. 18.5, csa-C22.2 no. 62275 |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL Type | 11 |
| UL-File Number | E64963 |
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660019197 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.33m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0012m³ |
| Packaging 1 - Weight (kg) | 0.148201kg |
| Packaging 1 - Width (m) | 0.145m |
| Packaging 3 - Height (m) | 0.192m |
| Packaging 3 - Length (m) | 0.586m |
| Packaging 3 - Qty | 6000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0439m³ |
| Packaging 3 - Weight (kg) | 9.69406kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 120000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 214.88kg |
| Packaging 4 - Width (m) | 0.8m |
