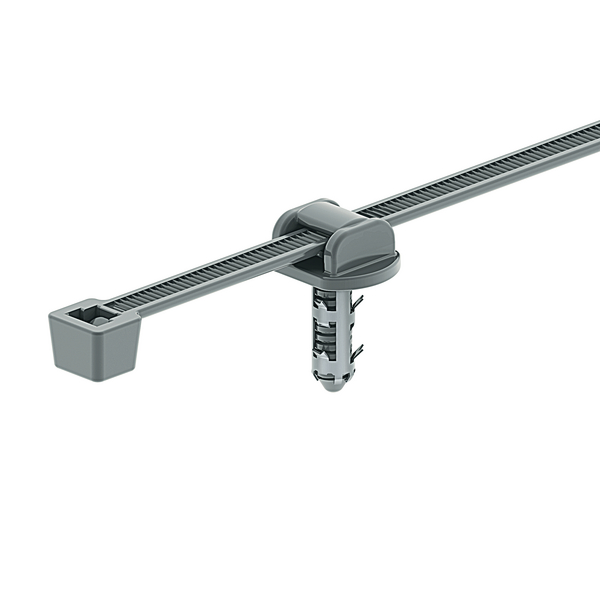

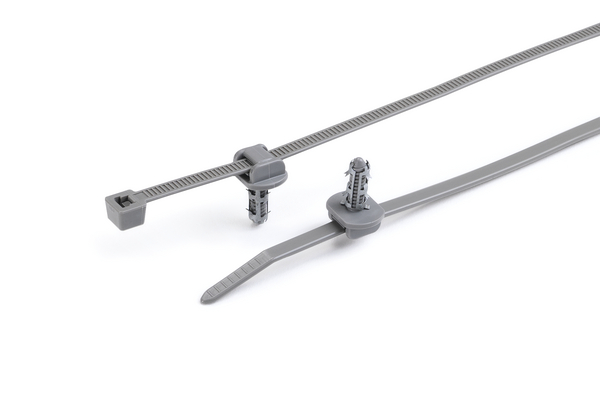

Fixing tie for hole (round), inside serrated, ∅1-45.0mm, grey, 1000pcs.
Art.-No. 156-01203 | T50RDHA5.5x15-PA46-GY |  Details

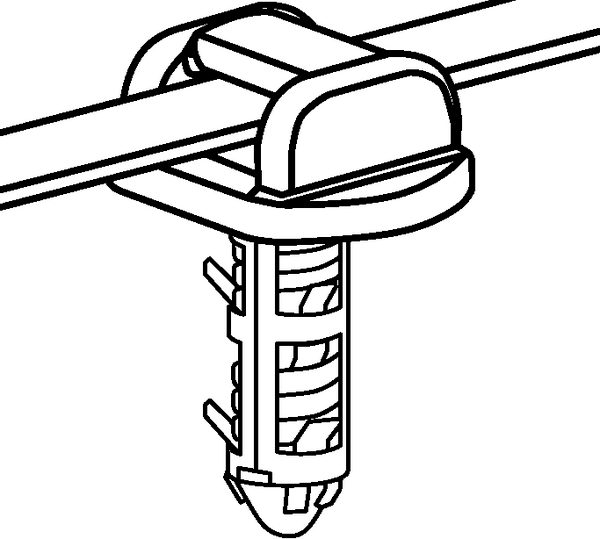

    • Pre-assembled 2-piece fixing tie with deep hole anchor
    • The high 'pull off' forces are due to the integrated metal clamp
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
    • Suitable for use within blind holes with or without thread
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Grey (GY)
    Identification Plate Position none
    Key product features deep hole anchor
    Local order number T50R-DHZA5.5x15.0_PA46_M1
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T50RDHA5.5x15-PA46-GY
    Pack Cont. 1000pcs.
    Package Content packed in Bag
    Product Family Deep hole anchor DHA5.5 - DHA8.4
    Product Group 2-piece fixing ties with deep hole anchor, with disc, for round holes
    Short Description 2-Piece fixing tie 200x4.6 mm, with deep hole anchor, PA46, GY
    Type T50RDHA5.5x15
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1-45.0mm
    Bundle ∅ min. 1mm
    Height (H) 20.15mm

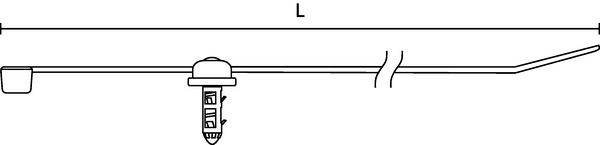

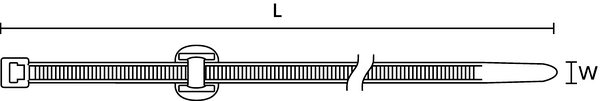

    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Weight/Unit 0.002322kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 5.4 - 5.6 mm
    for Panel Thickness min - max 15
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    Operating Temperature Foot Part (Metric) -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026477848
    Packaging 1 - Height (m) 0.105m
    Packaging 1 - Length (m) 0.545m
    Packaging 1 - Qty 1000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.02718m³
    Packaging 1 - Weight (kg) 2.365597kg
    Packaging 1 - Width (m) 0.475m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 4000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.594388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 148.152kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
