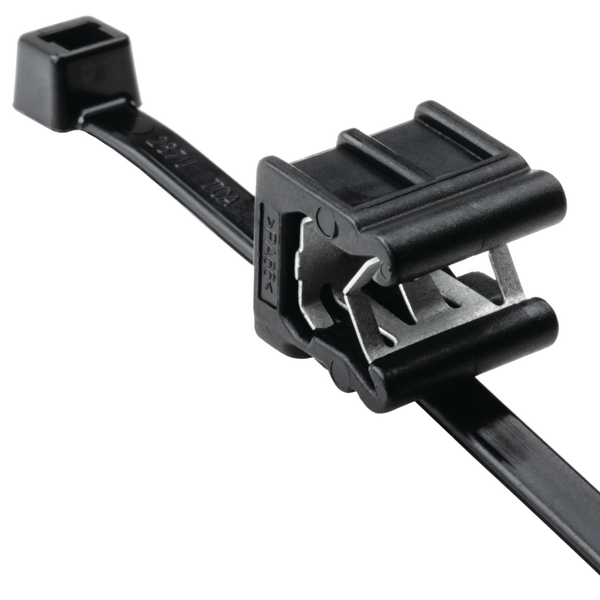

Fixing tie for edge, inside serrated, ∅5.0-50.0mm, black, 500pcs.
Art.-No. 156-02459
| T50REC23-PA66HS/PA66HIRHS-BK
|
Details
- Pre-assembled 2-piece fixing tie with EdgeClip
- Cable tie head can be moved after bundling
- For minimum bundle diameters of 1 mm
- For edges of 3 – 6 mm
Request your individual offer now
Request quote
More products in this product group:
| Application | These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry. |
| Application Tool | ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP |
| Cable Tie | Polyamide 6.6 (PA66) |
| Colour | Black (BK) |
| Description | Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 3.0 to 6.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution. |
| Fixation Method | EdgeClip, sideway, assembled, 2 piece |
| Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Identification Plate Position | none |
| Key product features | for narrow bundling |
| Local order number | T50ROSEC23 Preto |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | T50REC23-PA66HS/PA66HIRHS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| Product Family | EdgeClip-Series, 3.0 - 6.0 mm, side fixing |
| Product Group | 2-Piece Fixing Ties for Edges, 3,0 - 6,0 mm |
| Releasable Closure (Yes/No) | No |
| Type | T50REC23 |
| Variant | Inside Serrated |
| Bundle Diameter max (metric) | 50.0mm |
| Bundle ∅ | 5.0-50.0mm |
| Bundle ∅ min. | 5.0mm |
| Height (H) | 1.2mm |
| Height (H2) | 14.6mm |
| Length (L) | 200.0mm |
| Length (L2) | 14.8mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 3.0 - 6.0mm |
| Thickness (T) | 1.2mm |
| Width (W) | 4.6mm |
| Width (W2) | 16.0mm |
| for Panel Thickness min - max | 3 - 6 mm |
| for Panel Thickness min - max | 0.1 - 0.2 " |
