Fixing tie for hole (round), inside serrated, ∅45.0mm, black, 500pcs.
Art.-No. 156-00770 | T50RFT6XXL-PA66HS/PA66HIRHS-BK | Details

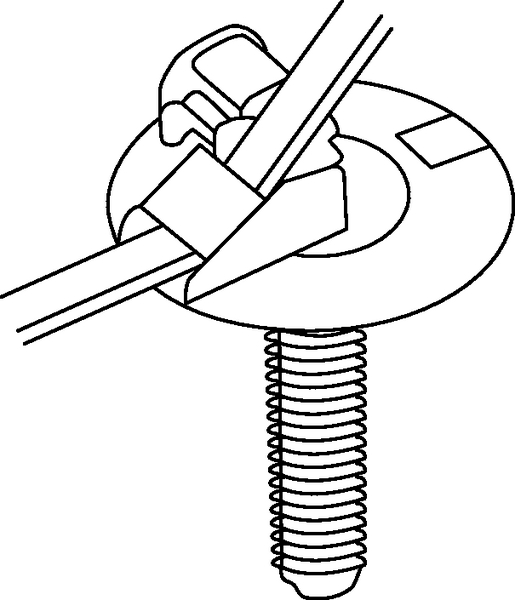

These fir tree fixings can also be used in threaded, blind holes.

Pre-assembled 2-piece fixing tie with fir tree foot part
Cable tie head can be moved after bundling
Easy to assemble without the need for a tool
Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
Fir tree foot part can be used for a variety of panel thicknesses
Suitable for use within threaded holes

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads Datasheet

More products in this product group:

2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes >

Base Data

Application	Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Black (BK)
Description	These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method	Fir Tree
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position	none
Local order number	T50RFT6XXL-BK
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	T50RFT6XXL-PA66HS/PA66HIRHS-BK
Pack Cont.	500pcs.
Package Content packed in	Bag
Product Family	Fir tree parts FT6
Product Group	2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Tie Closure	plastic pawl
Type	T50RFT6XXL

Product Dimensions


Bundle Diameter max (metric)	45.0mm
Bundle ∅	45.0mm
Disc ∅	30.,0mm
Length (L)	200.0mm
Min.Tensile Strength	225N
Width (W)	4.6mm
for Hole ∅ (FH)	6.25 - 6.75 mm
for Panel Thickness min - max	0.9 - 1.2 mm

Downloads

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	CN
GTIN-13 / EAN	4031026427485

More Information

ETIM 7.0 Key	EC000046
ETIM 8.0 Key	EC000046
ETIM 9.0 Key	EC000046
UNSPSC Key	39121717
