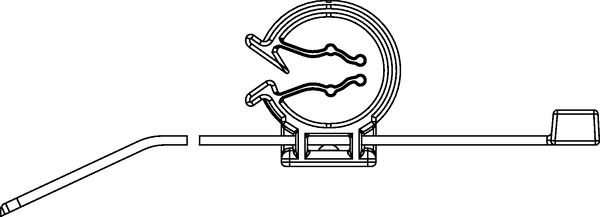

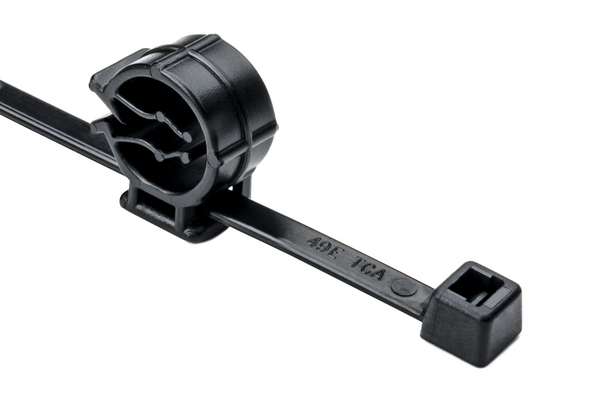

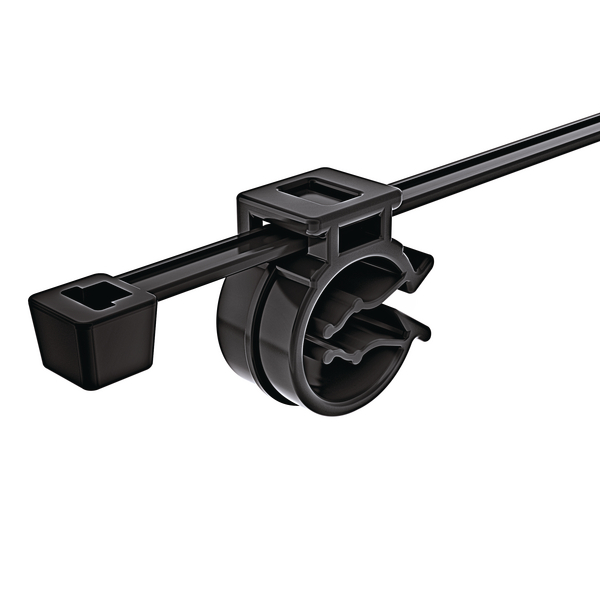

Fixing tie for cable bundles/with pipe/tube holder, inside serrated, ∅4.0-45.0mm, black, 500pcs.
Art.-No. 156-00036 | T50ROC1A-PA66HS/PA66HIRHS-BK |  Details

Reusable clip with Cable tie for multiple bundling of cables in different directions and suitable for pre-installation and replacement in case of maintenance.

    • For post-installation of additional cables for preassembled cable looms
    • Variety of twist angles and even different loop directions provide flexibility for cable routing
    • For OC1 and 2A additional cable tie dimensions are available
    • CBTO-series for cable ties up to 5 mm
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features for multiple routing, removable
    Local order number T50ROC1A.HB6P
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROC1A-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Group 2-piece fixing ties with pipe clip
    Short Description 2-Piece fixing tie 202x4.6 mm, with pipe clip, PA66HS/PA66HIRHS, black
    Type T50ROC1A
    Attach to Diameter 0.16 - 0.39 "
    Attach to Ø 4.0 - 10.0
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 4.0-45.0mm
    Bundle ∅ min. 4.0mm
    Length (L) 202mm
    Min.Tensile Strength 225N
    Thickness (T) 1.2mm
    Weight/Unit 0.002601kg
    Width (W) 4.6mm
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026252872
    Packaging 1 - Height (m) 0.105m
    Packaging 1 - Length (m) 0.37m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01321m³
    Packaging 1 - Weight (kg) 1.329635kg
    Packaging 1 - Width (m) 0.34m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 8.79781kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 126.564kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
