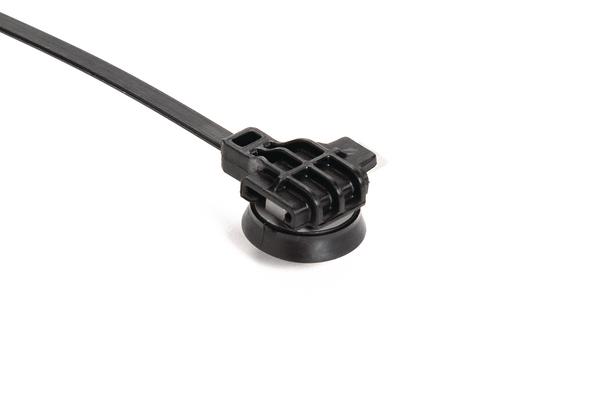

Fixing tie for hole (round), ∅2.0-50.0mm, black/grey, 2200pcs.
Art.-No. 156-02467 | T50ROS15ACCSRAH1.4T-PA66HIRHSUV/TPE-BK/GY |  Details

The additional seal protects against the ingress of moisture.

    • Pre-assembled 2-piece fixing tie with arrowhead foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressure from various directions
    • Seal protects against splash water
    • Versions "SRAH" are coming with a seal made from thermoplastic elastomer (TPE)
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
    Colour Black (BK), Grey (GY)
    Fixation Method arrowhead
    Identification Plate Position none
    Local order number 156-02467
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION T50ROS15ACCSRAH1.4T-PA66HIRHSUV/TPE-BK/GY
    Pack Cont. 2200pcs.
    Package Content packed in Bag
    Product Family for round holes, sealed
    Product Group 2-piece fixing ties with arrowhead, with disc
    Tie Closure plastic pawl
    Type T50ROS15ACCSRAH1.4T
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Disc ∅ 22.3mm
    Height (H) 18.5mm
    Length (L) 218mm
    Min.Tensile Strength 225N
    Offset Length 15.0mm
    Panel Thickness max. 1.2 - 1.8mm
    Width (W) 28.4mm
    for Hole ∅ (FH) 6.35 mm (hexagonal), 6.5 mm
    for Panel Thickness min - max 1.2 - 1.8 mm
    for Panel Thickness min - max 0.1 - 0.1 "
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026711409
    Packaging 1 - Weight (kg) 0.004kg
    Packaging 3 - Height (m) 0.352m
    Packaging 3 - Length (m) 0.572m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Width (m) 0.349m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
