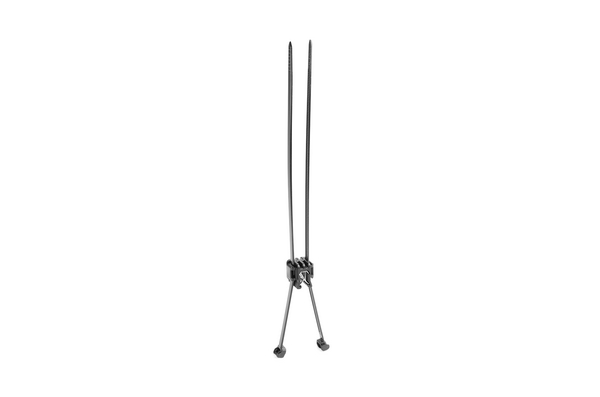

Fixing tie for edge/for cable bundles, outside serrated, ∅2.0-50.0mm, black, 500pcs.
Art.-No. 156-03291 | T50ROSDEC1.5-4SP-PA66HS/PA66HIRHS-BK Details

  • Pre-assembled 3-piece fixing tie with EdgeClip
  • For parallel routing of two harnesses
  • For minimum bundle diameters of 2 mm
  • For edges of 1.5 – 4 mm

Request your individual offer now

Application These cable ties and EdgeClip assemblies are ideal for parallel routing use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Description 3-piece fixing tie, EdgeClip 1.5 - 4 mm, for parallel routing
Fixation Method EdgeClip, sideway, assembled, 2 piece
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Key product features for multiple routing
Local order number T50ROSEC1.5-4DSP-PA66HIRHS-BK
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50ROSDEC1.5-4SP-PA66HS/PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Releasable Closure (Yes/No) No
Short Description 3-Piece Fixing Tie, outside serrated 200x4.6 for Edges 1.5-4 mm, for parallel routing, HS/HIRHS-black
Tie Closure plastic pawl
Type T50ROSDEC1.5-4SP
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 2.0-50.0mm
Bundle ∅ min. 2.0mm
Cable Tie Head Height (metric) 5.9mm
Cable Tie Head Length (metric) 6.75mm
Cable Tie Head Width (metric) 7.9mm
Height (H) 1.3mm
Height (H2) 16.1mm
Length (L) 200.0mm
Length (L2) 15.0mm
Min.Tensile Strength 225N
Panel Thickness max. 1.5 - 4.0mm
Thickness (T) 1.3mm
Weight/Unit 0.004681kg
Width (W) 4.6mm
Width (W2) 15.8mm
for Panel Thickness min - max 1.5 - 4 mm
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026734620
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.55m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0181
Packaging 1 - Weight (kg) 2.384097kg
Packaging 1 - Width (m) 0.47m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 2500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.740485kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 30000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 173.91kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
