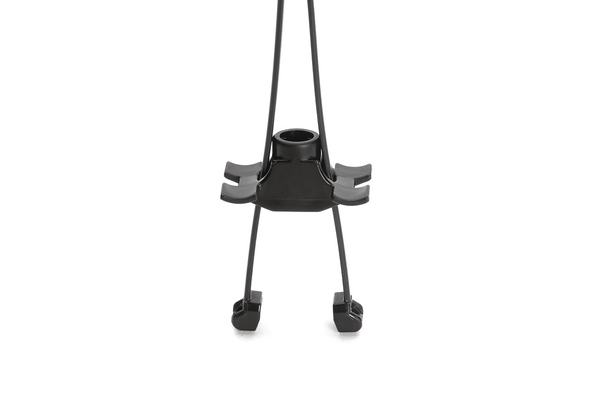

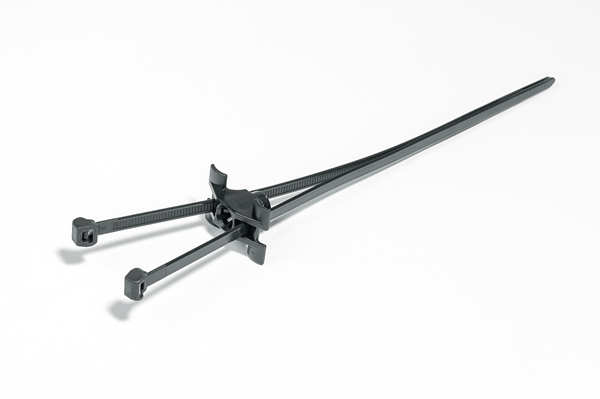

Fixing tie for stud, outside serrated, ∅4.0-45.0mm, black, 500pcs.
Art.-No. 150-56199
| T50ROSDSBS5-PA66HS/PA66HIRHS-BK
|
Details
- Pre-assembled 2-piece fixing tie with stud retainer
- For parallel routing of cables, hoses or harnesses
- Cable tie head can be moved after bundling
- Easy to install without the need for a tool
- For 5 mm studs or 5 mm ISO threaded studs
Request your individual offer now
Request quote
More products in this product group:
| Application | Widely used for securing cables pipes and hoses in the automotive and truck building industries, the mounting base is simply pushed onto a 5 mm diameter stud or bolt. |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Fixation Method | Weld Stud Fixing |
| Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Identification Plate Position | none |
| Key product features | for multiple routing |
| Local order number | 150-56199.NB6P |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | T50ROSDSBS5-PA66HS/PA66HIRHS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| Product Group | Fixing Elements for Weld Studs, for parallel routing |
| Releasable Closure (Yes/No) | No |
| Short Description | 2-Piece Fixing Tie for Weld Studs and parallel routing 150x4.6 black |
| Type | T50ROSDSBS5 |
| Variant | Outside Serrated |
|
|
| Bundle Diameter max (metric) | 45.0mm |
| Bundle ∅ | 4.0-45.0mm |
| Bundle ∅ min. | 4.0mm |
| Height (H) | 1.3mm |
| Height (H2) | 15.0mm |
| Length (L) | 200mm |
| Length (L2) | 20.0mm |
| Min Stud Length | 14.2mm |
| Min Stud Length (imperial) | 0.56" |
| Min.Tensile Strength | 222N |
| Stud ∅ | 5.0 mm |
| Stud ∅ (imperial) | 0.20" |
| Thickness (T) | 1.3mm |
| Weight/Unit | 0.004106kg |
| Width (W) | 4.6mm |
| Width (W2) | 30.0mm |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026202471 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.43m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.02451m³ |
| Packaging 1 - Weight (kg) | 2.096597kg |
| Packaging 1 - Width (m) | 0.38m |
| Packaging 3 - Height (m) | 0.538m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.1213m³ |
| Packaging 3 - Weight (kg) | 9.486388kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.22m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 16000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.171m³ |
| Packaging 4 - Weight (kg) | 96.904kg |
| Packaging 4 - Width (m) | 0.8m |
