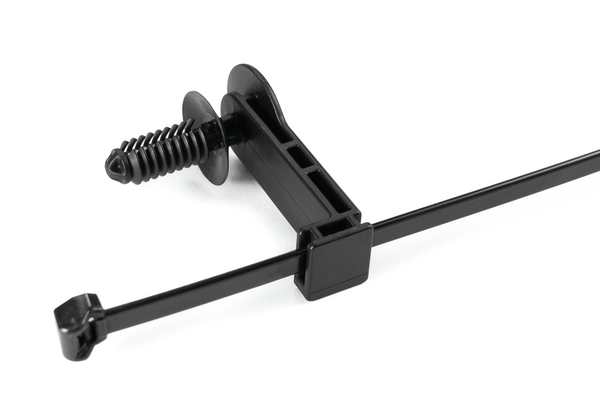

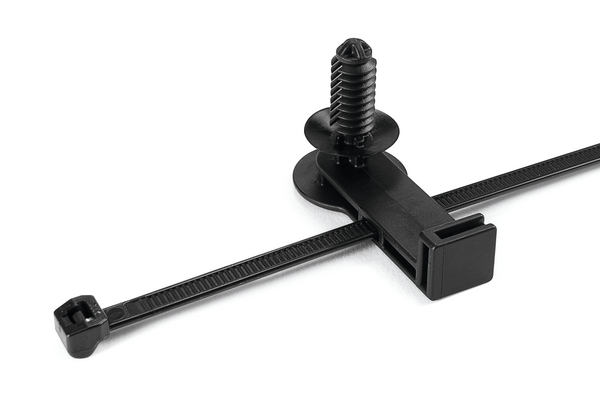

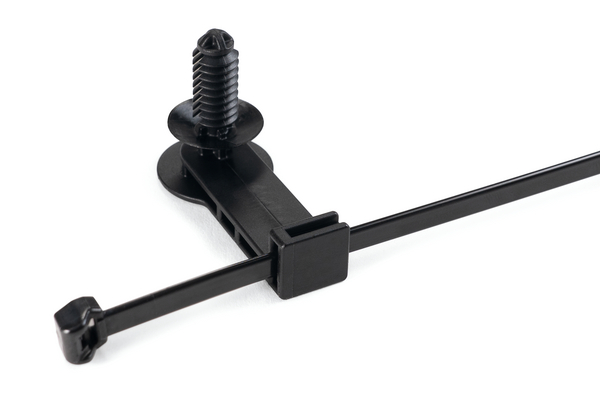

Fixing tie for hole (round), inside serrated, ∅50.0mm, black, 2000
Art.-No. 156-02966 | T50ROSFT6.7LGSO35SET-PA66HS/PA66HIRHS-BK |  Details

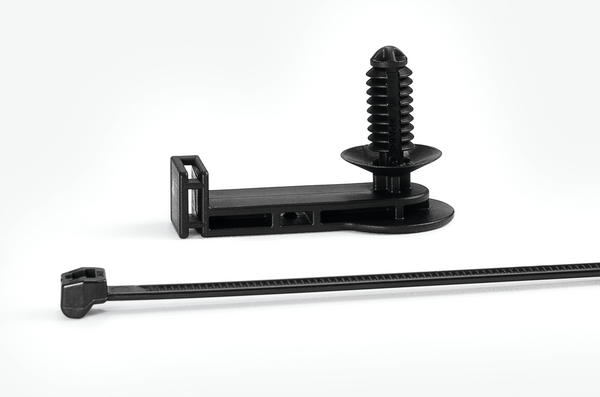

The 2 piece fixing tie T50ROS-FT6.7LGSO35SV as a SET variant.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Identification Plate Position none
    Local order number T50ROS-FT6.5LGSO25SV SET-PA6-BK-500
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROSFT6.7LGSO35SET-PA66HS/PA66HIRHS-BK
    Pack Cont. 2000
    Package Content packed in Box
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROSFT6.7LGSO35SET
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 50.0mm
    Disc ∅ 16.0mm
    Height (H) 28.6mm
    Height (H2) 17.7mm
    Length (L) 45.0mm
    Min.Tensile Strength 225N
    Offset Length 35.0mm
    Weight/Unit 0.004299kg
    Width (W) 20.0mm
    Width (W2) 12.0mm
    for Hole ∅ (FH) 6.5 - 6.8 mm
    for Panel Thickness min - max 1 - 10 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026638737
    Packaging 1 - Type Bag
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 2000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 9.248kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 205.96kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
