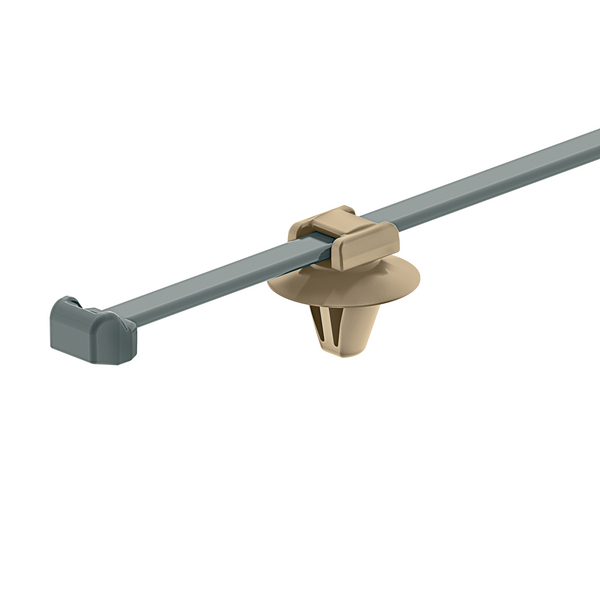

Fixing tie for hole (round), outside serrated, ∅1.0-45.0mm, grey/beige, 100pcs.
Art.-No. 156-00455
| T50ROSP1SFT6.5-PA46/PEEK-GY/BGE
|
Details

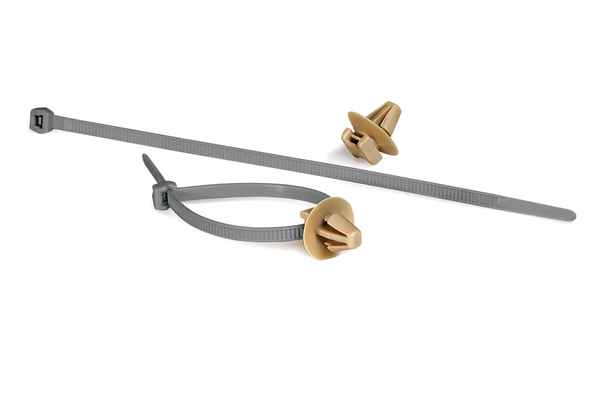

- Pre-assembled 2-piece fixing tie with arrowhead foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
- Features material PEEK:
- -55 °C to +240 °C operating temperature
- Excellent resistance against chemicals and gamma radiation
Request your individual offer now
Request quote
More products in this product group:
| Application | The ties with fixing element P1SFT6,5 or P2SFT6,5 are ideal when the requirement for temperature or chemical resistance is very high. They are used for cable harnesses in the automotive industry. |
| Cable Tie | Polyamide 4.6 (PA46) |
| Colour | Grey (GY), Beige (BGE) |
| Fixation Method | arrowhead |
| Foot Part | Polyetheretherketone (PEEK) |
| Identification Plate Position | none |
| Local order number | T50ROSP1SFT65_MC512-C1 |
| Material | Polyamide 4.6 (PA46), Polyetheretherketone (PEEK) |
| PART DESCRIPTION | T50ROSP1SFT6.5-PA46/PEEK-GY/BGE |
| Pack Cont. | 100pcs. |
| Package Content packed in | Bag |
| Product Family | T50ROSP1SFT6.5 for panel thickness 0.7 - 1.3 mm |
| Product Group | 2-Piece Fixing Ties with Arrowhead, with Disc, for high temperature applications |
| Short Description | 2-piece fixing ties with arrowhead, with disc, for high temperature applications 200x4.6 mm, pa46 / peek, grey / beige |
| Tie Closure | plastic pawl |
| Type | T50ROSP1SFT6.5 |
| Variant | Outside Serrated |
| Bundle Diameter max (metric) | 45.0mm |
| Bundle ∅ | 1.0-45.0mm |
| Bundle ∅ min. | 1.0mm |
| Disc ∅ | 16.0mm |
| Fixing Hole Shape | Circular |
| Height (H) | 15.0mm |
| Length (L) | 200.0mm |
| Length (L2) | 8.6mm |
| Length (L3) | 16mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 0.7 – 1.3mm |
| Thickness (T) | 1.3mm |
| Weight/Unit | 0.001881kg |
| Width (W) | 4.6mm |
| Width (W3) | 8.4mm |
| for Hole ∅ (FH) | 6.3 - 6.7 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
| for Panel Thickness min - max | 0.7 - 1.3 mm |
Download
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +130 °C, -55 °C to +240 °C |
| Operating Temperature Foot Part (Metric) | -40 °C to +240 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026300153 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.275m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0044m³ |
| Packaging 1 - Weight (kg) | 0.201962kg |
| Packaging 1 - Width (m) | 0.32m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 3.72724kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.235m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.186m³ |
| Packaging 4 - Weight (kg) | 95.6kg |
| Packaging 4 - Width (m) | 0.8m |
