Fixing tie for hole (round), outside serrated, ∅5.0-45.0mm, black, 500pcs.
Art.-No. 150-37791
| T50ROSSFT6.5-16-3-PA66HS/PA66HIRHS-BK
|
Details

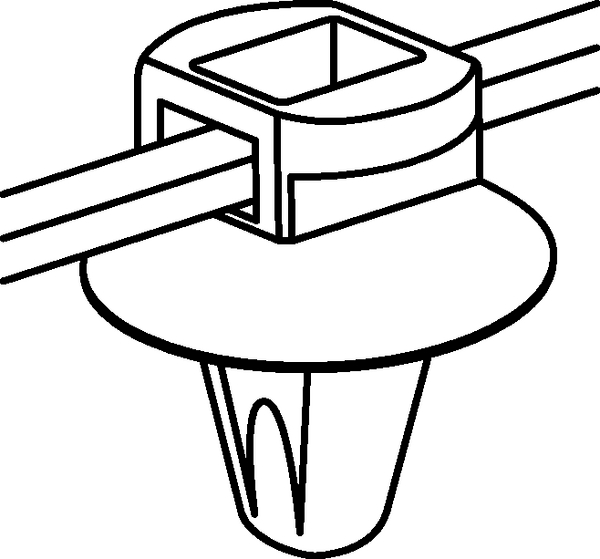

- Pre-assembled 2-piece fixing tie with arrowhead foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing. |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Identification Plate Position | none |
| Local order number | 150-37791.NB6P |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | T50ROSSFT6.5-16-3-PA66HS/PA66HIRHS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| Product Family | 2-Piece Fixing Ties with Arrowhead, with Disc, for round holes |
| Product Group | 2-piece fixing ties with arrowhead, with disc |
| Short Description | Fixing Tie 200x4.6 mm, 2-piece, arrowhead, heat stabilised, high impact modified, black |
| Tie Closure | plastic pawl |
| Type | T50ROSSFT6.5-16-3 |
| Variant | Outside Serrated |
| Bundle Diameter max (metric) | 45.0mm |
| Bundle ∅ | 5.0-45.0mm |
| Bundle ∅ min. | 5.0mm |
| Disc ∅ | 16.0mm |
| Height (H) | 1.3mm |
| Height (H2) | 10mm |

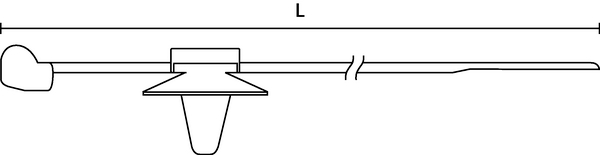

| Length (L) | 200mm |
| Length (L2) | 11.6mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 2.5 - 3.5mm |
| Weight/Unit | 0.001856kg |
| Width (W) | 4.6mm |
| Width (W2) | 9.0mm |
| for Hole ∅ (FH) | 6.3 - 6.7 mm |
| for Panel Thickness min - max | 2.5 - 3.5 mm |
| for Panel Thickness min - max | 0.1 - 0.1 " |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| Operating Temperature Foot Part (Metric) | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UV-Stabilised | No |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026195094 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.03555m³ |
| Packaging 1 - Weight (kg) | 0.957135kg |
| Packaging 1 - Width (m) | 0.45m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 8.47708kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 122.712kg |
| Packaging 4 - Width (m) | 0.8m |
