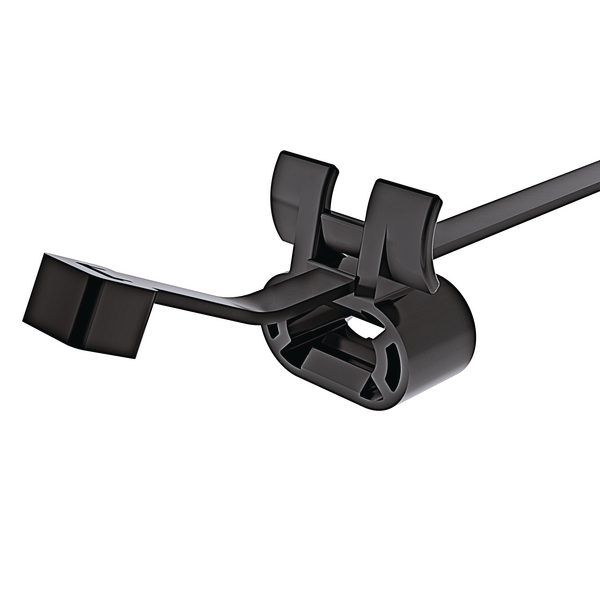

Fixing tie for stud, inside serrated, ∅2.0-45.0mm, black, 250pcs.
Art.-No. 156-00742 | T50RSB5-PA66/POM-BK |  Details

Cable ties illustrating the variety of application methods for weld stud fixing.

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Local order number T50R SB5 PRETO ABRACADEIRA
    Material Polyamide 6.6 (PA66), Polyacetal (POM)
    PART DESCRIPTION T50RSB5-PA66/POM-BK
    Pack Cont. 250pcs.
    Package Content packed in Bag
    Product Family SB5 Series
    Product Group 2-Piece Fixing Ties for Weld , moveable
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RSB5
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 2.0-45.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 1.2mm
    Height (H2) 10mm
    Length (L) 200mm
    Length (L2) 20mm
    Min Stud Length 14.2mm
    Min.Tensile Strength 225N
    Stud ∅ 5.0 mm
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 21.8mm
    Flammability UL 94 V2, UL 94 HB
    Operating Temperature -40 °C to +85 °C
    Operating Temperature Foot Part (Metric) -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    Country of Origin BR
    GTIN-13 / EAN 7890176001153
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
