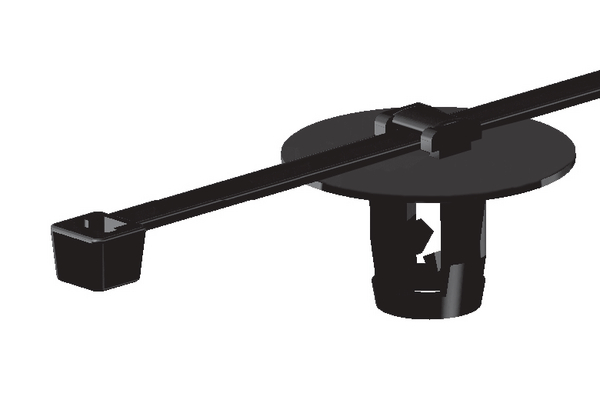

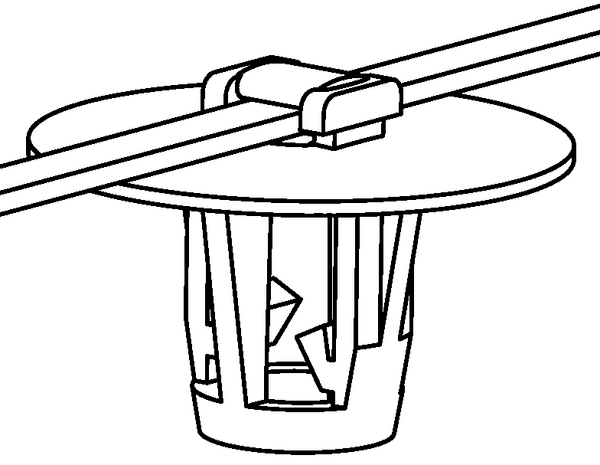

Fixing tie for stud, inside serrated, ∅1.0-45.0mm, black, 500pcs.
Art.-No. 156-02564 | T50RSBH6SD-PA66HS-BK |  Details

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation

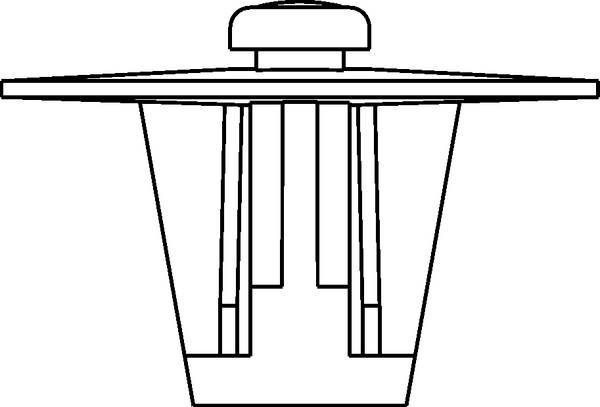

    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Foot Part Polyamide 6.6, heat stabilised (PA66HS)
    Identification Plate Position none
    Local order number T50RSBH6SD_PA66HS_BK_D1
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50RSBH6SD-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Group 2-Piece Fixing Ties for Weld Studs
    Tie Closure plastic pawl
    Type T50RSBH6SD
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.0-45.0mm
    Bundle ∅ min. 1.0mm
    Cable Tie Head Length (metric) 200.0mm
    Disc ∅ 30.0
    Height (H) 20.3mm
    Length (L) 200mm
    Max Stud Length 14.5mm
    Min.Tensile Strength 225N
    Stud ∅ 6.0 mm
    Thickness (T) 1.2
    Weight/Unit 0.003112kg
    Width (W) 4.6mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026612263
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.03842m³
    Packaging 1 - Weight (kg) 1.599597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.417582kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 146.04kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
