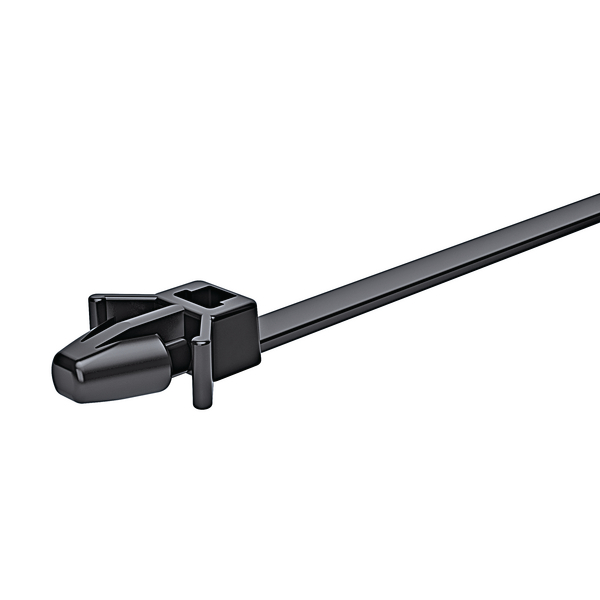

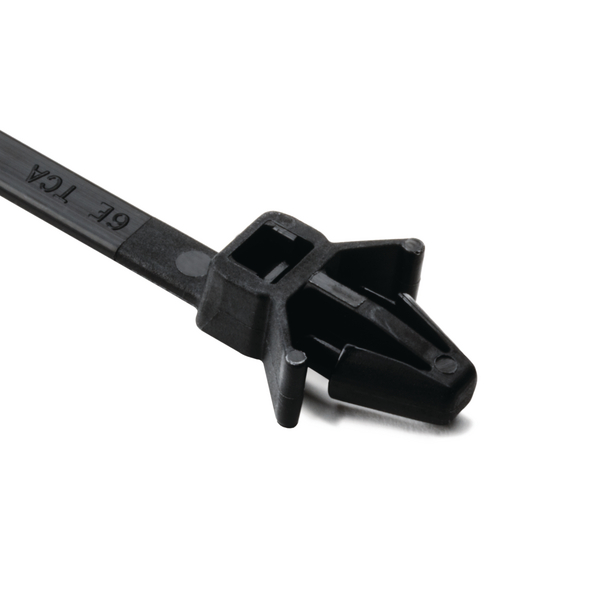

Fixing tie for hole (round), inside serrated, ∅1.5-45.0mm, black, 500pcs.
Art.-No. 111-85720 | T50RSFM-PA66HS-BK |  Details

Fixing tie with Arrowhead for round hole.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
    Anti rotation (Yes / No) NO
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Local order number T50RSFM.HB6P
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50RSFM-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in pcs.
    Product Family for round holes
    Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
    Releasable Closure (Yes/No) No
    Short Description 1-Piece Fixing Tie with Arrowhead and Wings
    Tie Closure plastic pawl
    Type T50RSFM
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.5-45.0mm
    Bundle ∅ min. 1.5mm
    Length (L) 205mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.7 - 3.0mm
    Thickness (T) 1.3mm
    Weight/Unit 0.001631kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.0 - 6.6 mm
    for Panel Thickness min - max 0.7 - 3 mm
    for Panel Thickness min - max 0 - 0.1 "
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660326073
    Packaging 1 - Height (m) 0.085m
    Packaging 1 - Length (m) 0.29m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00912m³
    Packaging 1 - Weight (kg) 0.815501kg
    Packaging 1 - Width (m) 0.37m
    Packaging 3 - Height (m) 0.364m
    Packaging 3 - Length (m) 0.563m
    Packaging 3 - Qty 8000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0777m³
    Packaging 3 - Weight (kg) 14.009016kg
    Packaging 3 - Width (m) 0.379m
    Packaging 4 - Height (m) 1.236m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 96000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.187m³
    Packaging 4 - Weight (kg) 189.108kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
