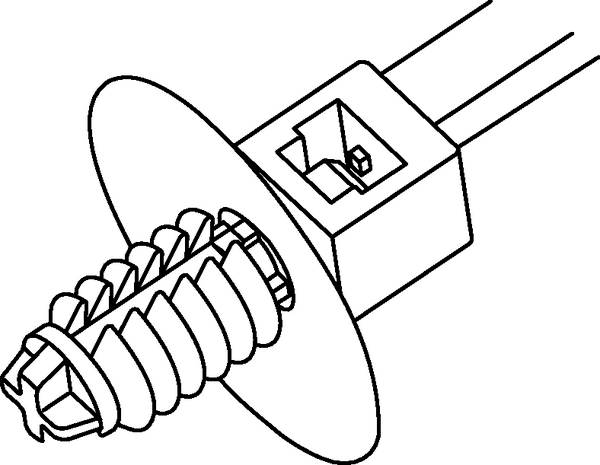

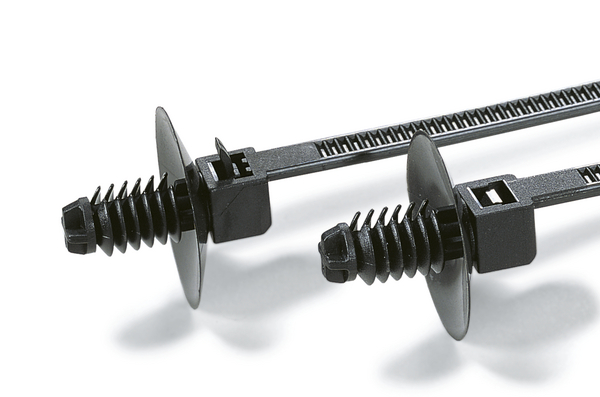

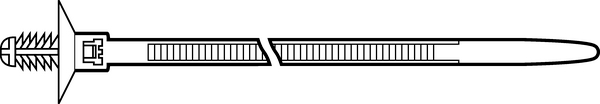

Fixing tie for hole (round), inside serrated, ∅1.5-31mm, black, 250pcs.
Art.-No. 150-55550 | T50SDP6-PA66HIRHS-BK |  Details

Ideal for use in deep panels and threaded, blind holes.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet

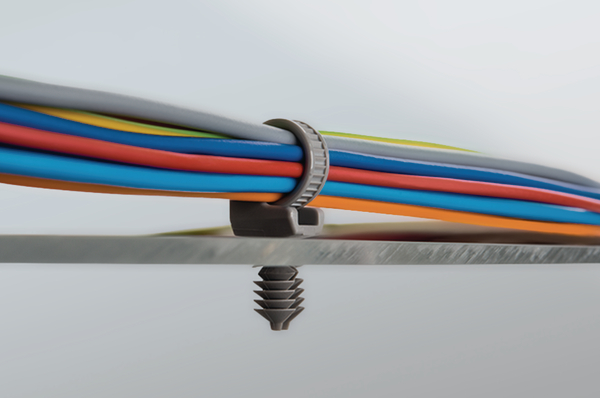

    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity and ease of use has resulted in these parts being used in many other industries, for example: aviation, switch-gear manufacture and white goods.
    Anti rotation (Yes / No) NO
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Local order number T50SDP6.HB5P
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SDP6-PA66HIRHS-BK
    Pack Cont. 250pcs.
    Package Content packed in pcs.
    Product Family Fir tree parts FT6
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SDP6
    Variant Inside Serrated
    Bundle Diameter max (metric) 31mm
    Bundle ∅ 1.5-31mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 22.0mm
    Fixing Hole Shape Circular

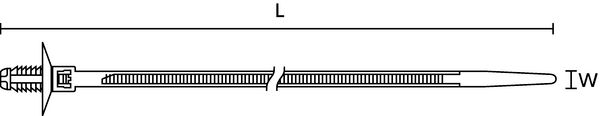

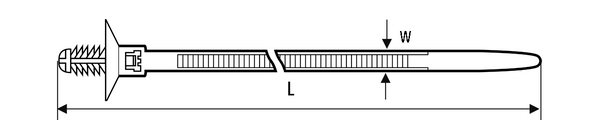

    Length (L) 170mm
    Length of Fir Tree 12.5mm
    Min.Tensile Strength 225N
    Thickness (T) 1.5mm
    Width (W) 5.0mm
    for Hole ∅ (FH) 6.3 - 7.1 mm
    for Panel Thickness min - max 0.8 - 7 mm
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660326486
    Packaging 1 - Weight (kg) 3.2kg
    Packaging 3 - Height (m) 0.36m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 3000
    Packaging 3 - Type Carton
    Packaging 3 - Volume (m³) 0.0793m³
    Packaging 3 - Weight (kg) 10.10kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.08m
    Packaging 4 - Length (m) 1.16m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 0.952m³
    Packaging 4 - Weight (kg) 141.0kg
    Packaging 4 - Width (m) 0.76m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
