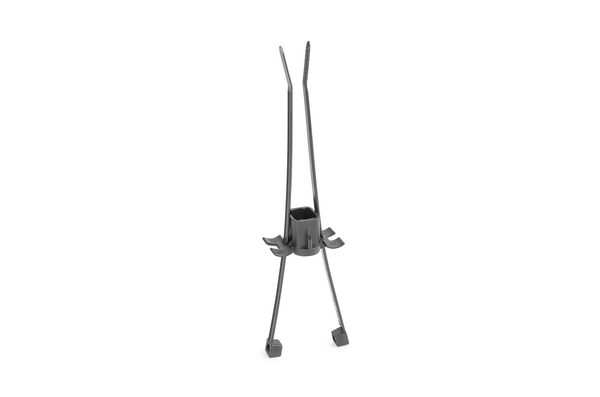

Fixing tie for stud, inside serrated, ∅2.0-35.0mm, black, 500pcs.
Art.-No. 156-03295 | T50SDSB5-6H-PA66HS/PA66HIRHS-BK |  Details

    • Pre-assembled 2-piece fixing tie with stud retainer
    • For parallel routing of cables, hoses or harnesses
    • Cable tie head can be moved after bundling
    • Easy to install without the need for a tool
    • For 5 or 6 mm studs or 5 or 6 mm ISO threaded studs
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application 156-03295
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Description Fixing tie for stud, inside serrated, ∅2.0-35.0mm, black
    Fixation Method Stud Mount
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Key product features for multiple routing
    Local order number T50SDSB5-6H-PA66HIRHS/PA66HS-BK
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SDSB5-6H-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family Fixing tie for stud
    Product Group Fixing tie for stud
    Short Description Fixing tie for stud, inside serrated, ∅2.0-35.0mm, black
    Tie Closure plastic pawl
    Type T50SDSB5-6H
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 2.0-35.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 1.2mm
    Height (H2) 17.0mm
    Length (L) 160.0mm
    Length (L2) 34.2mm
    Max Stud Length 16.0mm
    Min.Tensile Strength 225N
    Stud ∅ T5, T6, M5, M6
    Thickness (T) 1.2mm
    Weight/Unit 0.004246kg
    Width (W) 4.6mm
    Width (W2) 20.6mm
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026735245
    Packaging 1 - Height (m) 0.14m
    Packaging 1 - Length (m) 0.55m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.03619m³
    Packaging 1 - Weight (kg) 2.166597kg
    Packaging 1 - Width (m) 0.47m
    Packaging 3 - Height (m) 0.538m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2500
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.1213m³
    Packaging 3 - Weight (kg) 11.932985kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.22m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 20000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.171m³
    Packaging 4 - Weight (kg) 116.48kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
