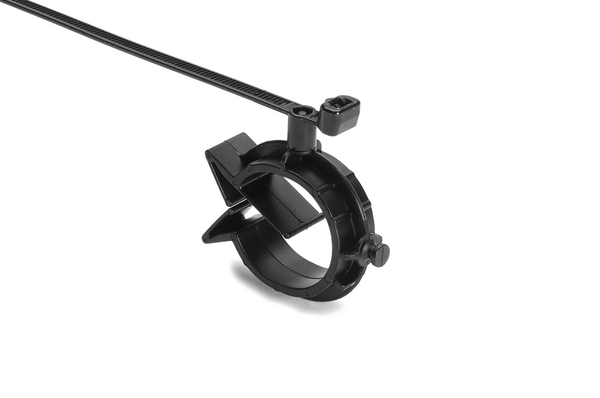

Fixing tie with pipe/tube holder, ∅2.0-50.0mm, black, 500pcs.
Art.-No. 156-00130 | T50SMVCOC19-24.5-PA66HS/PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Local order number T50SMVCOC19-24.5-MC5-BK-D1
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SMVCOC19-24.5-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family T50SMVCOC19-24,5 for Pipediameter 19.0 - 24.5 mm
    Product Group 2-piece fixing ties with pipe clip
    Type T50SMVCOC19-24.5
    Attach to Ø 19.0 - 24.5
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm

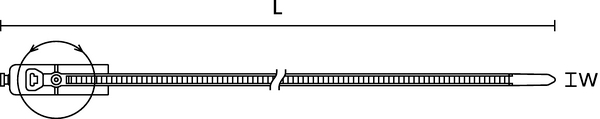

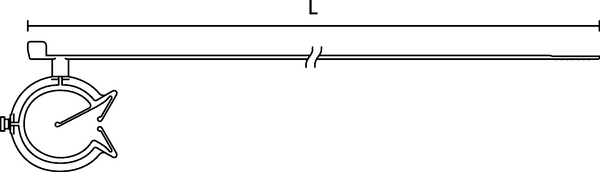

    Length (L) 210mm
    Min.Tensile Strength 222N
    Thickness (T) 1.35mm
    Weight/Unit 0.0064kg
    Width (W) 4.7mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026262574
    Packaging 1 - Height (m) 0.14m
    Packaging 1 - Length (m) 0.36m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01764m³
    Packaging 1 - Weight (kg) 3.243597kg
    Packaging 1 - Width (m) 0.35m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.794388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 186.552kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
