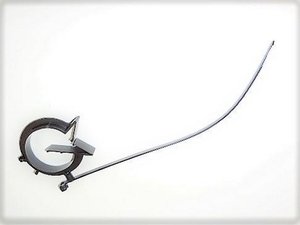

Fixing tie with pipe/tube holder, inside serrated, ∅2.0-50.0mm, black, 250pcs.
Art.-No. 156-00304 | T50SMVCOC31-39-PA66HS/PA66HIRHS-BK |  Details

    This product is not available anymore.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features lockable, rotatable
    Local order number T50SMVCOC31-39-MC5-BK-M1
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SMVCOC31-39-PA66HS/PA66HIRHS-BK

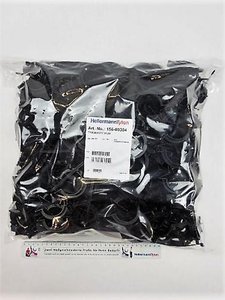

    Pack Cont. 250pcs.
    Package Content packed in Bag
    Product Group 2-Piece Fixing Ties with Pipe Clip, twistable 360°
    Type T50SMVCOC31-39
    Attach to Ø 31.0 - 39.0
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Length (L) 210mm
    Min.Tensile Strength 222N
    Thickness (T) 1.35mm
    Weight/Unit 0.007515kg
    Width (W) 4.7mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026278940
    Packaging 1 - Height (m) 0.155m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 250
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0397m³
    Packaging 1 - Weight (kg) 1.922347kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 1000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 8.509388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 12000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 123.132kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
